OR43B
TWO PIECE SWAGED FITTINGS UNIVERSAL SERIES FOR WIRE BRAIDED AND 4 SPIRAL HYDRAULIC HOSES
ORFS FEMALE SWIVEL - 45° ELBOW
| Code | Hose | T | A | B | D | CH | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | INCH | SIZE | [mm] | [in] | [mm] | [in] | [mm] | [in] | [mm] | [in] | [in] | ||
| OR44B-04-04 | 6 | 1/4" | 04 | 9/16" - 18 | 29,5 | 1,16 | 8,0 | 0,31 | 10,9 | 0,43 | 17,0 | 0,669 | 11/16" |
| OR44B-04-06 | 6 | 1/4" | 4 | 1.11/16" - 16 | 29,0 | 1,14 | 9,5 | 0,37 | 11,3 | 0,44 | 22,0 | 0,866 | 7/8" |
| OR44B-05-06 | 8 | 5/16" | 5 | 11/16"-16 | 35,5 | 1,40 | 9,5 | 0,37 | 11,5 | 0,45 | 22,0 | 0,866 | 7/8" |
| OR43B-06-04 | 10 | 3/8" | 6 | 9/16" - 18 | 32,5 | 1,28 | 8,0 | 0,31 | 10,7 | 0,42 | 17,0 | 0,669 | 11/16" |
| OR44B-06-06 | 10 | 3/8" | 06 | 11/16" - 16 | 35,5 | 1,40 | 9,5 | 0,37 | 11,0 | 0,43 | 22 | 0,866 | 7/8" |
| OR43B-08-06 | 12 | 1/2" | 8 | 11/16" - 16 | 38,5 | 1,52 | 11,0 | 0,43 | 11,5 | 0,45 | 22,0 | 0,866 | 7/8" |
| OR44B-08-08 | 12 | 1/2" | 8 | 13/16" - 16 | 43,0 | 1,69 | 11,0 | 0,43 | 14,3 | 0,56 | 24,0 | 0,945 | 15/16" |
| OR44B-08-10 | 12 | 1/2" | 8 | 1" - 14 | 43,5 | 1,71 | 13,5 | 0,53 | 16,6 | 0,65 | 30,0 | 1,181 | 1.3/16" |
| OR43B-08-12 | 12 | 1/2" | 8 | 13/16" - 12 | 56,5 | 2,22 | 14,5 | 0,57 | 18,9 | 0,74 | 36,0 | 1,417 | 1.7/16" |
| OR44B-10-10 | 16 | 5/8" | 10 | 1" - 14 | 59,5 | 2,34 | 13,5 | 0,53 | 20,3 | 0,80 | 30,0 | 1,181 | 1,3/16" |
| OR44B-10-12 | 16 | 5/8" | 10 | 1.3/16" - 12 | 60,5 | 2,38 | 14,5 | 0,57 | 23,2 | 0,91 | 36,0 | 1,417 | 1.7/16" |
| OR43B-12-10 | 19 | 3/4" | 12 | 1" - 14 | 67,5 | 2,65 | 13,5 | 0,53 | 14,3 | 0,56 | 30,0 | 1,181 | 1,3/16" |
| OR44B-12-12 | 19 | 3/4" | 12 | 1.3/16" - 12 | 60,4 | 2,38 | 14,5 | 0,57 | 21,9 | 0,87 | 36,0 | 1,417 | 1.7/16" |
| OR44B-12-16 | 19 | 3/4" | 12 | 1.7/16" - 12 | 63,2 | 2,49 | 14,8 | 0,58 | 23,3 | 0,92 | 41,0 | 1,614 | 1.5/8" |
| OR43B-16-12 | 25 | 1" | 16 | 1.3/16" - 12 | 71,8 | 2,79 | 14,5 | 0,57 | 22,3 | 0,88 | 36,0 | 1,417 | 1.7/16" |
| OR44B-16-16 | 25 | 1" | 16 | 1.7/16" - 12 | 73,0 | 2,87 | 14,8 | 0,58 | 24,4 | 0,96 | 41,0 | 1.614 | 1.5/8" |
| OR42B-16-20 | 25 | 1" | 16 | 1.11/16" - 12 | 91,4 | 3,60 | 14,8 | 0,58 | 38,7 | 1,52 | 50,0 | 1,969 | 2" |
| OR42B-20-20 | 31 | 1.1/4" | 20 | 1.11/16 - 12 | 97,0 | 3,82 | 14,8 | 0,58 | 37,5 | 1,48 | 50,0 | 1,969 | 2" |
| OR42B-24-24 | 38 | 1.1/2" | 24 | 2" - 12 | 120,5 | 4,74 | 14,8 | 0,58 | 44,9 | 1,77 | 60,0 | 2,362 | 2.3/8" |

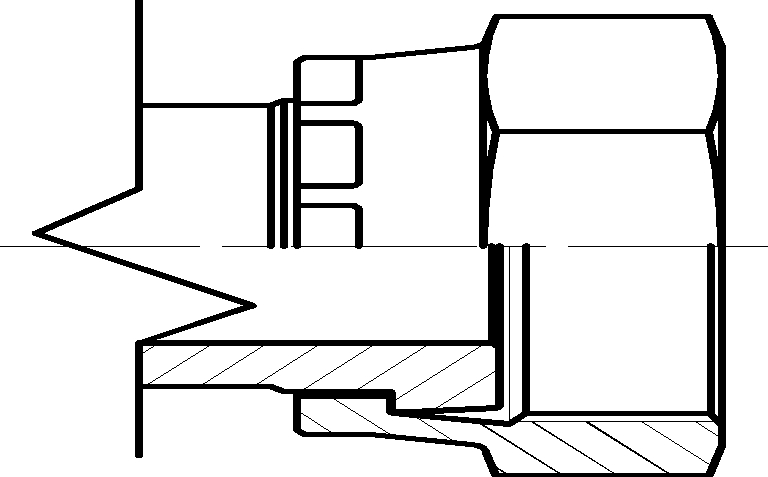

Nut type
OR43
OR42
OR46 (IMPERIAL NUT)
