FL93B
TWO PIECE SWAGED FITTINGS UNIVERSAL SERIES FOR WIRE BRAIDED AND 4 SPIRAL HYDRAULIC HOSES

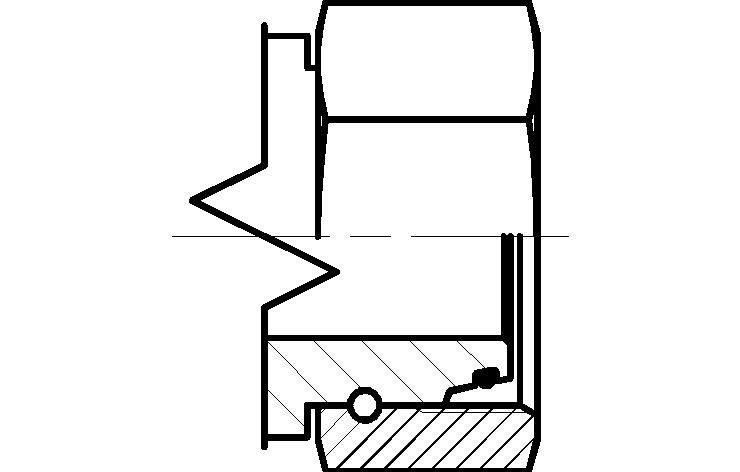

METRIC LIGHT FEMALE SWIVEL - 90° ELBOW (24° CONE SEAT)
| Code | Hose | T | PIPE | A | B | D | CH | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | INCH | SIZE | [mm] | [in] | [mm] | [in] | [mm] | [in] | [mm] | [in] | [in] | |||
| FL93B-04-12 | 6 | 1/4" | 04 | M12X1,5 | L6 | 30,7 | 1,21 | 2,6 | 0,10 | 30 | 1,18 | 16 | 0,630 | - |
| FL93B-04-14 | 6 | 1/4" | 4 | M14X1,5 | L8 | 28 | 1,1 | 1,5 | 0,06 | 31 | 1,22 | 17 | 0,669 | 11/16" |
| FL93B-04-16 | 6 | 1/4" | 4 | M16X1,5 | L10 | 28,2 | 1,11 | 1,5 | 0,06 | 32,5 | 1,28 | 19 | 0,748 | 3/4" |
| FL93B-04-18 | 6 | 1/4" | 04 | M18X1.5 | L12 | 29.5 | 1.16 | 1.5 | 0.06 | 34.5 | 1.36 | 22 | 0.866 | 7/8" |
| FL92B-05-14 | 8 | 5/16" | 05 | M14X1.5 | L8 | 36.2 | 1.43 | 1.5 | 0.06 | 34.5 | 1.36 | 19 | 0.748 | 3/4" |
| FL93B-05-16 | 8 | 5/16" | 5 | M16X1,5 | L10 | 30,5 | 1,2 | 1,5 | 0,06 | 33 | 1,3 | 19 | 0,748 | 3/4" |
| FL93B-05-18 | 8 | 5/16" | 5 | M18X1,5 | L12 | 31,5 | 1,24 | 1,5 | 0,06 | 31,5 | 1,24 | 22 | 0,866 | 7/8" |
| FL92B-06-16 | 10 | 3/8" | 6 | M16X1,5 | L10 | 34 | 1,34 | 3,5 | 0,14 | 39,5 | 1,56 | 19 | 0,748 | 3/4" |
| FL93B-06-18 | 10 | 3/8" | 6 | M18X1,5 | L12 | 30,5 | 1,2 | 1,5 | 0,06 | 36 | 1,42 | 22 | 0,866 | 7/8" |
| FL93B-08-22 | 12 | 1/2" | 8 | M22X1,5 | L15 | 38,2 | 1,5 | 2,5 | 0,1 | 40 | 1,57 | 27 | 1,063 | 1.1/16" |
| FL92B-10-22 | 16 | 5/8" | 10 | M22X1,5 | L15 | 54,0 | 2,13 | 2,5 | 0,10 | 55,5 | 2,19 | 27,0 | 1,063 | 1,1/16" |
| FL93B-10-26 | 16 | 5/8" | 10 | M26X1,5 | L18 | 54 | 2,13 | 2 | 0,08 | 53 | 2,09 | 32 | 1,26 | 1.1/4" |
| FL93B-10-27 | 16 | 5/8" | 10 | M27X1,5 | L18 | 54 | 2,13 | 2 | 0,08 | 53 | 2,09 | 32 | 1,26 | 1.1/4" |
| FL93B-12-30 | 19 | 3/4" | 12 | M30X2 | L22 | 55,5 | 2,19 | 3,5 | 0,14 | 57 | 2,24 | 36 | 1,417 | 1.7/16" |
| FL92B-16-30 | 25 | 1" | 16 | M30X2 | L22 | 62 | 2.44 | 3.5 | 0.14 | 58.5 | 2.30 | 36 | 1.417 | 1.7/16" |
| FL93B-16-36 | 25 | 1" | 16 | M36X2 | L28 | 74 | 2,91 | 3,5 | 0,14 | 69 | 2,71 | 41 | 1,614 | 1.5/8" |
| FL93B-16-45 | 25 | 1" | 16 | M45X2 | L35 | 79,5 | 3,13 | 3 | 0,12 | 76 | 2,99 | 50 | 1.969 | 2" |
| FL93B-20-36 | 31 | 1.1/4" | 20 | M36X2 | L28 | 83 | 3,27 | 4,5 | 0,18 | 72 | 2,83 | 41 | 1.614 | 1.5/8" |
| FL93B-20-45 | 31 | 1.1/4" | 20 | M45X2 | L35 | 85,5 | 3,37 | 2 | 0,08 | 83 | 3,27 | 50 | 1,969 | 2" |
| FL93B-20-52 | 31 | 1.1/4" | 20 | M52X2 | L42 | 85,5 | 3,37 | 4 | 0.16 | 88 | 3,46 | 60 | 2.362 | 2.3/8" |
| FL92B-24-45 | 38 | 1.1/2" | 24 | M45X2 | L35 | 89.6 | 3.53 | 3 | 0.12 | 83 | 3.27 | 50 | 1.969 | 2" |
| FL93B-24-52 | 38 | 1.1/2" | 24 | M52X2 | L42 | 103,0 | 4,05 | 3,0 | 0,12 | 95,5 | 3,76 | 60 | 2,362 | 2.3/8" |
