FL43B
TWO PIECE SWAGED FITTINGS UNIVERSAL SERIES FOR WIRE BRAIDED AND 4 SPIRAL HYDRAULIC HOSES
METRIC LIGHT FEMALE SWIVEL - 45° ELBOW (24° CONE SEAT)
| Code | Hose | T | PIPE | A | B | D | CH | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | INCH | SIZE | [mm] | [in] | [mm] | [in] | [mm] | [in] | [mm] | [in] | [in] | ||||
| FL41B-04-12 | 6 | 1/4" | 4 | M12X1,5 | L6 | 39,0 | 1,54 | 2,6 | 0,1 | 14,8 | 0,58 | 16 | 0,63 | - | |
| FL43B-04-14 | 6 | 1/4" | 4 | M14X1,5 | L8 | 35,2 | 1,39 | 1,5 | 0,06 | 15,5 | 0,61 | 17 | 0,669 | 11/16" | |
| FL43B-04-16 | 6 | 1/4" | 4 | M16X1,5 | L10 | 36,3 | 1,43 | 1,5 | 0,06 | 16,6 | 0,65 | 19 | 0,748 | 3/4" | |
| FL43B-04-18 | 6 | 1/4" | 4 | M18X1,5 | L12 | 42,5 | 1,67 | 1,5 | 0,06 | 18,0 | 0,71 | 22 | 0,866 | 7/8" | |
| FL43B-05-16 | 8 | 5/16" | 5 | M16X1,5 | L10 | 39 | 1,54 | 1,5 | 0,06 | 17,1 | 0,67 | 19 | 0,748 | 3/4" | |
| FL43B-05-18 | 8 | 5/16" | 05 | M18X1.5 | L12 | 41.5 | 1.63 | 1.5 | 0.06 | 19.2 | 0.76 | 22 | 0.866 | 7/8" | |
| FL42B-06-16 | 10 | 3/8" | 6 | M16X1,5 | L10 | 44,6 | 1,76 | 3,5 | 0,14 | 21,7 | 0,85 | 19 | 0,748 | 3/4" | |
| FL43B-06-18 | 10 | 3/8" | 6 | M18X1,5 | L12 | 42,6 | 1,68 | 1,5 | 0,06 | 19,2 | 0,76 | 22 | 0,866 | 7/8" | |
| FL43B-06-22 | 10 | 3/8" | 6 | M22X1,5 | L15 | 56,9 | 2,24 | 2,5 | 0,1 | 22,7 | 0,89 | 27 | 1,063 | 1.1/16" | |
| FL43B-08-22 | 12 | 1/2" | 8 | M22X1,5 | L15 | 48,2 | 1,9 | 2,5 | 0,1 | 20,8 | 0,82 | 27 | 1,063 | 1.1/16" | |
| FL43B-10-26 | 16 | 5/8" | 10 | M26X1,5 | L18 | 62,5 | 2,46 | 2 | 0,08 | 25,5 | 1 | 32 | 1,26 | 1.1/4" | |
| FL43B-12-30 | 19 | 3/4" | 12 | M30X2 | L22 | 67,5 | 2,66 | 3,5 | 0,14 | 28,3 | 1,11 | 36 | 1,417 | 1.7/16" | |
| FL43B-16-36 | 25 | 1" | 16 | M36X2 | L28 | 85,0 | 3,35 | 3,5 | 0,14 | 33,1 | 1,30 | 41 | 1,614 | 1.5/8" | |
| FL43B-20-45 | 31 | 1.1/4" | 20 | M45X2 | L35 | 102,5 | 4,04 | 2 | 0,08 | 42 | 1,65 | 50 | 1,969 | 2" | |
| FL42B-24-45 | 38 | 1.1/2" | 24 | M45X2 | L35 | 117,5 | 4,62 | 3,0 | 0,12 | 42,4 | 1,66 | 50 | 1,969 | 2" | |
| FL43B-24-52 | 38 | 1.1/2" | 24 | M52X2 | L42 | 121,0 | 4,76 | 3,0 | 0,12 | 46,0 | 1,81 | 60 | 2,362 | 2.3/8" | |

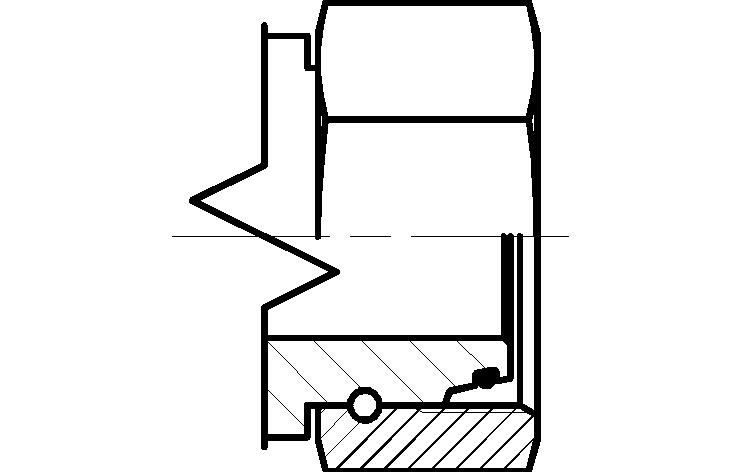

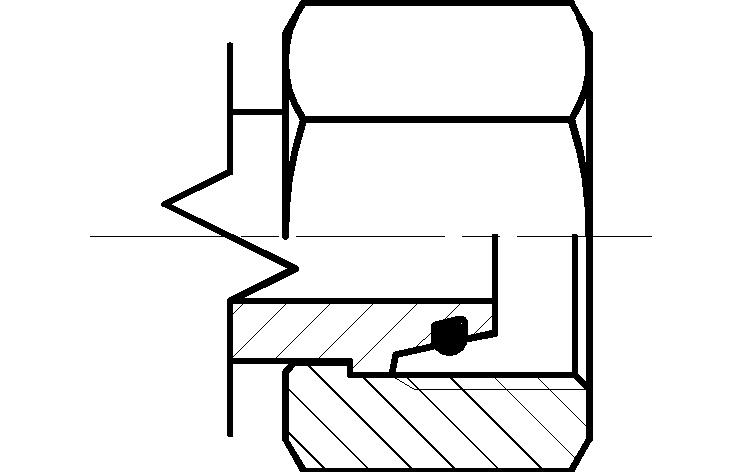

Nut type
