FJH11B
TWO PIECE SWAGED FITTINGS UNIVERSAL SERIES FOR WIRE BRAIDED AND 4 SPIRAL HYDRAULIC HOSES
JIC 37° FEMALE SWIVEL (DOUBLE HEX)
| Code | Hose | T | A | B | ES | CH | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | INCH | SIZE | [mm] | [in] | [mm] | [in] | [mm] | [in] | [in] | [mm] | [in] | [in] | |||
| FJH11B-03-04 | 5 | 3/16" | 3 | 7/16" - 20 | 19,5 | 0,77 | 8,5 | 0,33 | 11,11 | 0,437 | 7/16" | 14,0 | 0,551 | 9/16" | |
| FJH11B-03-05 | 5 | 3/16" | 03 | 1/2" - 20 | 20,8 | 0,82 | 9,5 | 0,37 | 14,0 | 0,551 | 9/16" | 17,46 | 0,687 | 11/16" | |
| FJH16B-03-05 | 5 | 3/16" | 03 | 1/2" - 20 | 20,8 | 0,82 | 9,5 | 0,37 | 14 | 0.551 | 9/16" | 17,46 | 0,687 | 11/16" | |
| FJH11B-04-04 | 6 | 1/4" | 04 | 7/16" - 20 | 20,8 | 0,82 | 8,5 | 0,33 | 14,0 | 0,551 | 9/16" | 14,0 | 0,551 | 9/16" | |
| FJH11B-04-05 | 6 | 1/4" | 4 | 1/2" - 20 | 21,5 | 0,85 | 9,5 | 0,37 | 14,0 | 0,551 | 9/16" | 17,0 | 0,669 | 11/16" | |
| FJH16B-04-06 | 6 | 1/4" | 04 | 9/16" - 18 | 23,0 | 0,91 | 10,5 | 0,41 | 14,0 | 0.551 | 9/16" | 17.46 | 0.687 | 11/16" | |
| FJH11B-04-06 | 06 | 1/4" | 04 | 9/16" - 18 | 23,0 | 0,91 | 10,5 | 0,41 | 14,0 | 0,551 | 9/16" | 19,0 | 0,748 | 3/4" | |
| FJH11B-05-06 | 8 | 5/16" | 5 | 9/16" - 18 | 21,0 | 0,83 | 9,5 | 0,37 | 14,0 | 0,551 | 9/16" | 19,0 | 0,748 | 3/4" | |
| FJH16B-05-06 | 8 | 5/16" | 5 | 9/16" - 18 | 21,0 | 0,83 | 10,5 | 0,41 | 14,0 | 0,551 | 9/16" | 17,46 | 0,687 | 11/16" | |
| FJH11B-06-04 | 10 | 3/8" | 6 | 7/16" - 20 | 22,0 | 0,87 | 8,5 | 0,33 | 17,0 | 0,669 | 11/16" | 14,0 | 0,551 | 9/16" | |
| FJH11B-06-05 | 10 | 3/8" | 6 | 1/2" - 20 | 22,5 | 0,89 | 9,5 | 0,37 | 17,0 | 0,669 | 11/16" | 17,0 | 0,669 | 11/16" | |
| FJH16B-06-05 | 10 | 3/8" | 06 | 1/2" - 20 | 22.5 | 0.89 | 9.5 | 0.37 | 17.46 | 0.687 | 11/16" | 17.46 | 0.687 | 11/16" | |
| FJH11B-06-06 | 10 | 3/8" | 6 | 9/16" - 18 | 24,0 | 0,94 | 9,5 | 0,37 | 17,0 | 0,669 | 11/16" | 19,0 | 0,748 | 3/4" | |
| FJH16B-06-06 | 10 | 3/8" | 6 | 9/16" - 18 | 24,0 | 0,94 | 9,5 | 0,37 | 17,0 | 0,669 | 11/16" | 17,46 | 0,687 | 11/16" | |
| FJH11B-06-08 | 10 | 3/8" | 6 | 3/4" - 16 | 26,0 | 1,02 | 10,7 | 0,42 | 19,0 | 0,748 | 3/4" | 22,0 | 0,866 | 7/8" | |
| FJH11B-06-10 | 10 | 3/8" | 6 | 7/8" - 14 | 28,5 | 1,12 | 12,7 | 0,5 | 22,0 | 0,866 | 7/8" | 27,0 | 1,063 | 1,1/16" | |
| FJH11B-06-12 | 10 | 3/8" | 6 | 1.1/16" - 12 | 33,5 | 1,32 | 14,3 | 0,56 | 27,0 | 1,063 | 1.1/16" | 32,0 | 1,260 | 1.1/4" | |
| FJH11B-08-06 | 12 | 1/2" | 8 | 9/16" - 18 | 26,5 | 1,04 | 9,5 | 0,37 | 19,0 | 0,748 | 3/4" | 19,0 | 0,748 | 3/4" | |
| FJH16B-08-06 | 12 | 1/2" | 8 | 9/16" - 18 | 26,5 | 1,04 | 9,5 | 0,37 | 19,0 | 0,748 | 3/4" | 17,46 | 0,687 | 11/16" | |
| FJH11B-08-08 | 12 | 1/2" | 8 | 3/4" - 16 | 26,5 | 1,04 | 10,7 | 0,42 | 19,0 | 0,748 | 3/4" | 22,0 | 0,866 | 7/8" | |
| FJH11B-08-10 | 12 | 1/2" | 8 | 7/8" - 14 | 28,5 | 1,12 | 12,7 | 0,5 | 22,0 | 0,866 | 7/8" | 27,0 | 1,063 | 1,1/16" | |
| FJH11B-08-12 | 12 | 1/2" | 8 | 1.1/16" - 12 | 34,0 | 1,34 | 14,3 | 0,56 | 27,0 | 1,063 | 1.1/16" | 32,0 | 1,260 | 1.1/4" | |
| FJH11B-08-16 | 19 | 3/4" | 12 | 1.5/16" - 12 | 41,5 | 1,63 | 15,1 | 0,61 | 32,0 | 1,216 | 1.1/4" | 38,0 | 1,496 | 1.1/2" | |
| FJH11B-10-08 | 16 | 5/8" | 10 | 3/4" - 16 | 28,5 | 1,12 | 10,7 | 0,42 | 22,0 | 0,866 | 7/8" | 22,0 | 0,866 | 7/8" | |
| FJH11B-10-10 | 16 | 5/8" | 10 | 7/8" - 14 | 28,5 | 1,12 | 12,7 | 0,5 | 22,0 | 0,866 | 7/8" | 27,0 | 1,063 | 1.1/16" | |
| FJH11B-10-12 | 16 | 5/8" | 10 | 1.1/16" - 12 | 34,0 | 1,34 | 14,3 | 0,56 | 27,0 | 1,063 | 1.1/16" | 32,0 | 1,260 | 1.1/4" | |
| FJH11B-12-10 | 19 | 3/4" | 12 | 7/8" - 14 | 35,0 | 1,38 | 12,7 | 0,5 | 27,0 | 1,063 | 1.1/16" | 27,0 | 1,063 | 1,1/16" | |
| FJH11B-12-12 | 19 | 3/4" | 12 | 1.1/16" - 12 | 34,5 | 1,36 | 14,3 | 0,56 | 27,0 | 1,063 | 1.1/16" | 32,0 | 1,260 | 1.1/4" | |
| FJH11B-12-14 | 19 | 3/4" | 12 | 1.3/16" - 12 | 31 | 1,22 | 14,5 | 0,57 | 30 | 1,181 | 1.3/16" | 36,0 | 1,417 | 1,7/16" | |
| FJH11B-12-16 | 19 | 3/4" | 12 | 1.5/16" - 12 | 38,5 | 1,51 | 15,1 | 0,61 | 32,0 | 1,216 | 1.1/4" | 38,0 | 1.496 | 1.1/2" | |
| FJH11B-16-12 | 25 | 1" | 16 | 1.1/16" - 12 | 38,0 | 1,5 | 14,3 | 0,56 | 32,0 | 1,260 | 1.1/4" | 32,0 | 1,260 | 1.1/4" | |
| FJH11B-16-16 | 25 | 1" | 16 | 1.5/16" - 12 | 38,0 | 1,50 | 15,1 | 0,59 | 32,0 | 1,216 | 1.1/4" | 38,0 | 1,496 | 1.1/2" | |
| FJH12B-20-20 | 31 | 1.1/4" | 20 | 1.5/8" - 12 | 49,5 | 1,95 | 16,0 | 0,63 | 41,0 | 1,614 | 1.5/8" | 50,0 | 1,969 | 2" | |
| FJH12B-24-24 | 38 | 1.1/2" | 24 | 1.7/8" - 12 | 56,9 | 2,24 | 18,5 | 0,73 | 50,0 | 1,969 | 2" | 55,0 | 2,165 | 2.3/16" | |
| FJH12B-32-32 | 51 | 2" | 32 | 2.1/2" - 12 | 74,0 | 2,91 | 24,0 | 0,94 | 65,0 | 2,559 | 2.9/16" | 75,0 | 2,953 | - | |

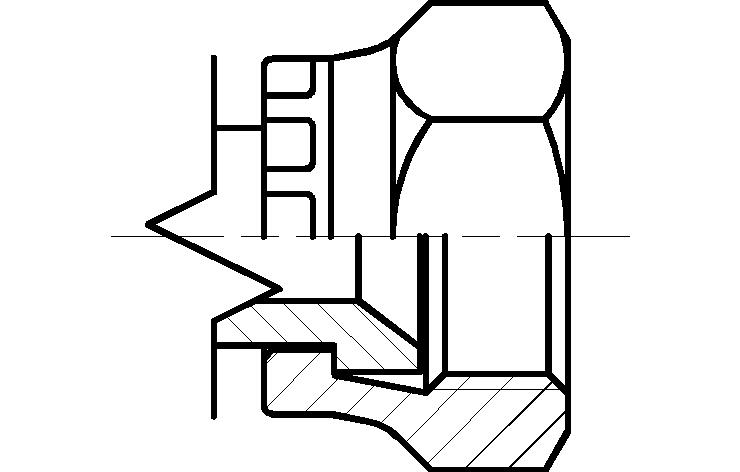

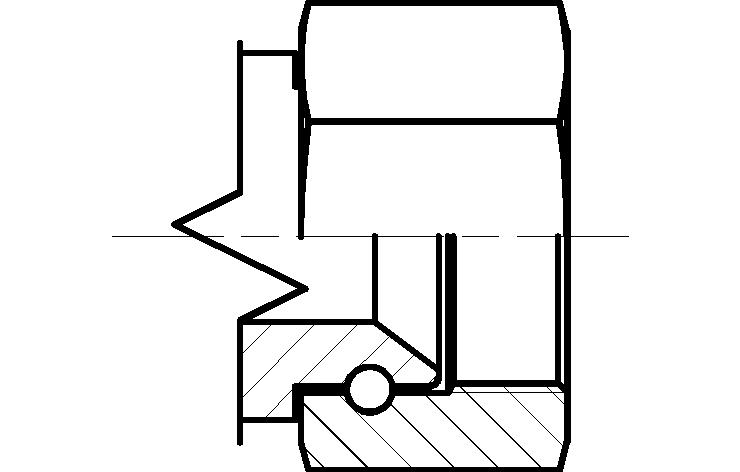

Nut type
FJH11
FJH12
FJH16 (IMPERIAL NUT)
