-1

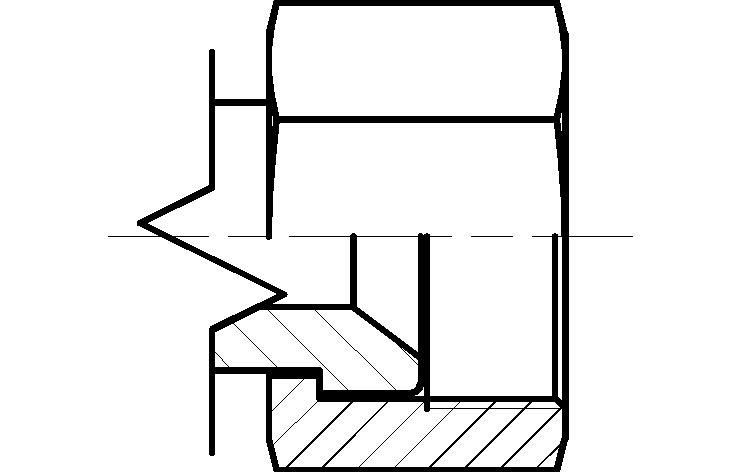

JIC 37� FEMALE SWIVEL - 45� ELBOW

Code	Hose			T	A		B		D		CH
Code	DN	INCH	SIZE	T	[mm]	[in]	[mm]	[in]	[mm]	[in]	[mm]	[in]	[in]
FJ41B-03-04	5	3/16"	3	7/16" - 20	35,3	1,39	8,7	0,34	14,1	0,55	14,0	0,551	9/16"
FJ41B-04-04	6	1/4"	4	7/16" - 20	32,0	1,26	8,7	0,34	11,1	0,44	14,0	0,551	9/16"
FJ41B-04-05	6	1/4"	4	1/2" - 20	34,5	1,36	9,5	0,37	14,8	0,58	17,0	0,669	11/16"
FJ43B-04-06	6	1/4"	4	9/16" - 18	33,1	1,30	9,5	0,37	13,4	0,53	19,0	0,748	3/4"
FJ46B-04-06	6	1/4"	4	9/16" - 18	33,1	1,30	9,5	0,37	13,4	0,53	17,46	0,687	11/16"
FJ41B-05-05	8	5/16"	5	1/2" - 20	38,5	1,51	9,5	0,37	14,8	0,59	17,0	0,669	11/16"
FJ41B-05-06	8	5/16"	5	9/16" - 18	30,9	1,22	9,5	0,37	12,1	0,48	19,0	0,748	3/4"
FJ46B-05-06	8	5/16"	5	9/16" - 18	30,9	1,22	9,5	0,37	12,1	0,48	17,46	0,687	11/16"
FJ41B-06-05	10	3/8"	6	1/2" - 20	38,5	1,51	9,5	0,37	14,8	0,59	17,0	0,669	11/16"
FJ41B-06-06	10	3/8"	6	9/16" - 18	33,9	1,33	9,5	0,37	12,1	0,48	19,0	0,748	3/4"
FJ46B-06-06	10	3/8"	6	9/16" - 18	33,9	1,33	9,5	0,37	12,1	0,48	17,46	0,687	11/16"
FJ43B-06-08	10	3/8"	6	3/4" - 16	42,5	1,67	10,7	0,42	15,0	0,59	22,0	0,866	7/8"
FJ43B-06-10	10	3/8"	6	7/8" - 14	50,5	1,99	12,5	0,49	19,4	0,76	27,0	1,063	1,1/16"
FJ41B-08-08	12	1/2"	8	3/4" - 16	40,7	1,6	10,7	0,42	13,8	0,54	22,0	0,866	7/8"
FJ43B-08-10	12	1/2"	8	7/8" - 14	48,5	1,91	12,5	0,49	21,2	0,83	27,0	1,063	1,1/16"
FJ41B-08-12	12	1/2"	8	1.1/16" - 12	59,0	2,32	14,3	0,56	26,0	1,02	32,0	1,260	1.1/4"
FJ41B-10-10	16	5/8"	10	7/8" - 14	61,5	2,42	12,7	0,5	25,0	0,99	27,0	1,063	1,1/16"
FJ41B-10-12	16	5/8"	10	1.1/16" - 12	64,0	2,52	14,3	0,56	26,9	1,06	32,0	1,260	1.1/4"
FJ41B-12-12	19	3/4"	12	1.1/16" - 12	67,4	2,66	14,3	0,56	26,9	1,06	32,0	1,260	1.1/4"
FJ41B-12-16	19	3/4"	12	1.5/16" - 12	71,5	2,81	15,1	0,61	31,8	1,25	38,0	1,496	1.1/2"
FJ41B-16-16	25	1"	16	1.5/16" - 12	86,0	3,38	15,1	0,61	34,5	1,35	38,0	1,496	1.1/2"
FJ41B-20-16	31	1.1/4"	20	1.5/16" - 12	97,0	3,81	15,1	0,61	34,5	1,35	38,0	1,496	1.1/2"
FJ42B-20-20	31	1.1/4"	20	1.5/8" - 12	97,0	3,82	16,0	0,63	37,5	1,48	50,0	1,969	2"
FJ42B-24-24	38	1.1/2"	24	1.7/8" - 12	119,0	4,69	18,5	0,73	49,2	1,94	55,0	2,165	2.3/16"
FJ42B-32-32	51	2"	32	2.1/2" - 12	152,6	6,01	24,0	0,94	68,8	2,71	75,0	2,953	-
