OR93X
FOR 4 AND 6 SPIRAL HOSES - SKIVE APPLICATIONS
ORFS FEMALE SWIVEL - 90° ELBOW
| Code | Hose | T | A | B | D | CH | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | INCH | SIZE | [mm] | [in] | [mm] | [in] | [mm] | [in] | [mm] | [in] | [in] | |||
| OR93X-12-12 | 19 | 3/4" | 12 | 1.3/16" - 12 | 63 | 2,48 | 14,5 | 0,57 | 48.5 | 1.91 | 36 | 1,417 | 1.7/16" | |
| OR93X-16-16 | 25 | 1" | 16 | 1.7/16" - 12 | 77,3 | 3,04 | 14,8 | 0,58 | 71 | 2,80 | 41 | 1,614 | 1.5/8" | |
| OR92X-20-20 | 31 | 1.1/4" | 20 | 1.11/16" - 12 | 86,5 | 3,41 | 14,8 | 0,58 | 77 | 3,03 | 50 | 1,969 | 2" | |
| OR92X-24-24 | 38 | 1.1/2" | 24 | 2" - 12 | 107,3 | 4,22 | 14,8 | 0,58 | 94,0 | 3,70 | 60,0 | 2,362 | 2.3/8" | |

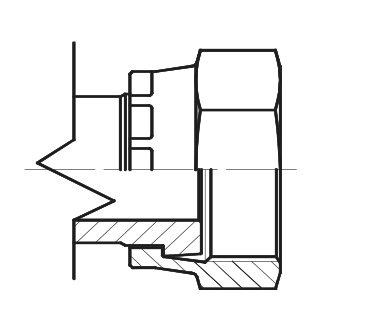

Nut type
OR93
OR92
