OR93K-L
FOR WIRE BRAID HOSES - NO SKIVE
ORFS FEMALE SWIVEL - 90° ELBOW (LONG DROP)
| Code | Hose | T | A | B | D | CH | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | INCH | SIZE | [mm] | [in] | [mm] | [in] | [mm] | [in] | [mm] | [in] | [in] | |||
| OR93K-04-04-33 | 6 | 1/4" | 04 | 9/16" - 18 | 29,5 | 1,16 | 8,0 | 0,31 | 33,0 | 1,30 | 19,0 | 0,748 | 3/4" | |
| OR94K-04-04-46 | 6 | 1/4" | 04 | 9/16" - 18 | 29,5 | 1,16 | 8,0 | 0,31 | 46,0 | 1,81 | 19,0 | 0,748 | 3/4" | |
| OR94K-04-06-38 | 6 | 1/4" | 04 | 11/16"-18 | 31,4 | 1,24 | 9,5 | 0,37 | 38,0 | 1,50 | 22,0 | 0,866 | 7/8" | |
| OR94K-04-06-54 | 6 | 1/4" | 04 | 11/16" - 16 | 31,4 | 1,24 | 9,5 | 0,37 | 54,0 | 2,13 | 22,0 | 0,866 | 7/8" | |
| OR94K-06-06-38 | 10 | 3/8" | 06 | 11/16"-16 | 31,5 | 1,24 | 9,5 | 0,37 | 38,0 | 1,50 | 22,0 | 0,866 | 7/8" | |
| OR93K-06-06-46 | 10 | 3/8" | 06 | 11/16" - 16 | 31,5 | 1,24 | 9,5 | 0,37 | 46 | 1,81 | 22 | 0,866 | 7/8" | |
| OR94K-06-06-54 | 10 | 3/8" | 06 | 11/16" - 16 | 31,5 | 1,24 | 9,5 | 0,37 | 54,0 | 2,13 | 22,0 | 0,866 | 7/8" | |
| OR94K-06-08-41 | 10 | 3/8" | 06 | 13/16" - 16 | 34,0 | 1,34 | 11,0 | 0,43 | 41,0 | 1,61 | 24,0 | 0,945 | 15/16" | |
| OR94K-06-08-64 | 10 | 3/8" | 06 | 13/16" - 16 | 31,5 | 1,24 | 11,0 | 0,43 | 64,0 | 2,52 | 24,0 | 0,945 | 15/16" | |
| OR94K-08-08-41 | 12 | 1/2" | 08 | 13/16" - 16 | 40,0 | 1,57 | 11,0 | 0,43 | 41,0 | 1,61 | 24,0 | 0,945 | 15/16" | |
| OR934-08-08-64 | 12 | 1/2" | 08 | 13/16" - 16 | 40 | 1.57 | 11 | 0,43 | 64 | 2,52 | 24 | 0,945 | 15/16" | |
| OR94K-08-08-L | 12 | 1/2" | 08 | 13/16" - 16 | 40,0 | 1,57 | 11,0 | 0,43 | 64,0 | 2,52 | 24,0 | 0,945 | 15/16" | |
| OR94K-10-10-47 | 16 | 5/8" | 10 | 1" - 14 | 53,5 | 2,11 | 13,5 | 0,53 | 47,0 | 1,85 | 30,0 | 1,181 | 1.3/16" | |
| OR94K-10-10-70 | 16 | 5/8" | 10 | 1" - 14 | 53,5 | 2,11 | 13,5 | 0,53 | 70,0 | 2,76 | 30,0 | 1,181 | 1.3/16" | |
| OR94K-12-12-58 | 19 | 3/4" | 12 | 1.3/16" - 12 | 57,0 | 2,24 | 14,5 | 0,57 | 58,0 | 2,28 | 36,0 | 1,417 | 1.7/16" | |
| OR94K-12-12-96 | 19 | 3/4" | 12 | 1.3/16" - 12 | 57,0 | 2,24 | 14,5 | 0,57 | 96,0 | 3,78 | 36,0 | 1,417 | 1.7/16" | |
| OR94K-16-16-71 | 25 | 1" | 16 | 1.7/16" - 12 | 74,0 | 2,91 | 13,8 | 0,54 | 71,0 | 2,79 | 41,0 | 1,614 | 1.5/8" | |
| OR94K-16-16-L | 25 | 1" | 16 | 1.7/16" - 12 | 70,3 | 2,77 | 14,8 | 0,58 | 114,0 | 4,49 | 41,0 | 1,614 | 1.5/8" | |

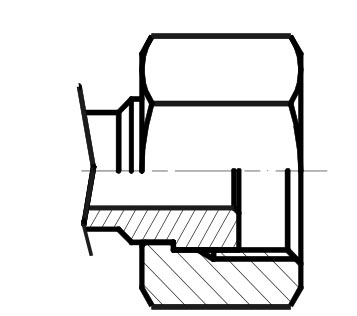

Nut type
