K For wire braid hoses no-skive
J For multispiral and wire braid hoses – no-skive
H For 6 spiral hoses – no-skive
X For 4 and 6 spiral hoses – skive application
T For SAE 100 R7 and T14 hoses
K For wire braid hoses no-skive
J For multispiral and wire braid hoses – no-skive
H For 6 spiral hoses – no-skive
X For 4 and 6 spiral hoses – skive application
T For SAE 100 R7 and T14 hoses

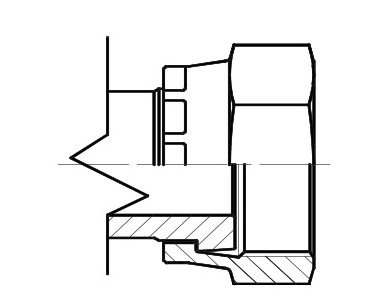

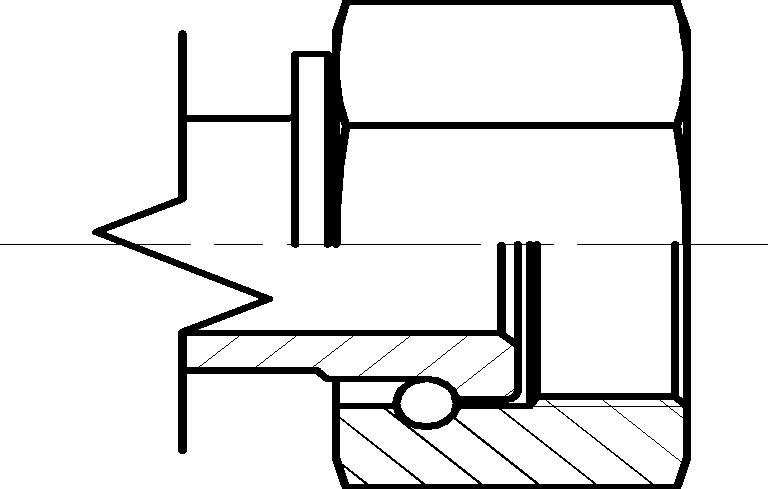

| Code | Hose | T | A | B | D | CH | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | INCH | SIZE | [mm] | [in] | [mm] | [in] | [mm] | [in] | [mm] | [in] | [in] | |||
| OR43X-12-12 | 19 | 3/4" | 12 | 1.3/16" - 12 | 69.3 | 2.69 | 14,5 | 0,57 | 22.3 | 0,88 | 36 | 1,417 | 1.7/16" | |
| OR43X-16-16 | 25 | 1" | 16 | 1.7/16" - 12 | 88,3 | 3,48 | 14,8 | 0,58 | 31 | 1,22 | 41 | 1,614 | 1.5/8" | |
| OR42X-20-20 | 31 | 1.1/4" | 20 | 1.11/16" - 12 | 99 | 3,90 | 14,8 | 0,58 | 37,5 | 1,48 | 50 | 1,969 | 2" | |
| OR42X-24-24 | 38 | 1.1/2" | 24 | 2" - 12 | 130,6 | 5,35 | 14,8 | 0,58 | 47,2 | 1,86 | 60,0 | 2,362 | 2.3/8" | |
