OR13J
FOR MULTISPIRAL AND WIRE BRAID HOSES - NO SKIVE

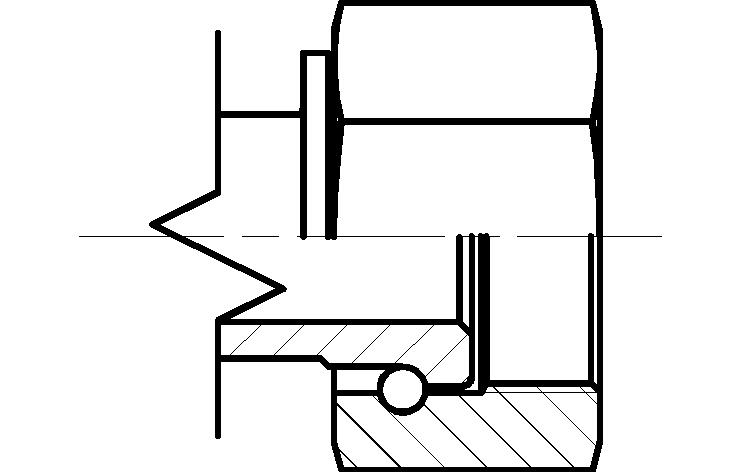

ORFS FEMALE SWIVEL
| Code | Hose | T | A | B | ES | CH | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | INCH | SIZE | [mm] | [in] | [mm] | [in] | [mm] | [in] | [in] | [mm] | [in] | [in] | |||
| OR13J-06-06 | 10 | 3/8" | 06 | 11/16" - 16 | 32 | 1,26 | 9,5 | 0,37 | 17 | 0,669 | 11/16" | 22 | 0,866 | 7/8" | |
| OR13J-06-08 | 10 | 3/8" | 06 | 13/16" - 16 | 36,5 | 1,44 | 11 | 0,43 | 19 | 0,748 | 3/4" | 24 | 0,945 | 15/16" | |
| OR13J-08-06 | 12 | 1/2" | 08 | 11/16" - 16 | 32,3 | 1,27 | 9,5 | 0,37 | 19 | 0,748 | 3/4" | 22 | 0,866 | 7/8" | |
| OR13J-08-08 | 12 | 1/2" | 08 | 13/16" - 16 | 38,2 | 1,50 | 11,0 | 0,43 | 19,0 | 0,748 | 3/4" | 24,0 | 0,945 | 15/16" | |
| OR13J-08-10 | 12 | 1/2" | 08 | 1" - 14 | 39,7 | 1,56 | 13,5 | 0,53 | 24 | 0,945 | 15/16" | 30 | 1,181 | 1.3/16" | |
| OR13J-08-12 | 12 | 1/2" | 08 | 1.3/16" - 12 | 44,7 | 1,76 | 14,5 | 0,57 | 30 | 1,181 | 1.3/16" | 36 | 1,417 | 1.7/16" | |
| OR13J-10-10 | 16 | 5/8" | 10 | 1" - 14 | 39,0 | 1,54 | 13,5 | 0,53 | 24,0 | 0,945 | 15/16" | 30,0 | 1,181 | 1.3/16" | |
| OR13J-10-12 | 16 | 5/8" | 10 | 1.3/16" - 12 | 44,0 | 1,73 | 14,5 | 0,57 | 30 | 1,181 | 1.3/16" | 36 | 1,417 | 1.7/16" | |
| OR13J-12-10 | 19 | 3/4" | 12 | 1" - 14 | 42,0 | 1,65 | 13,0 | 0,51 | 27 | 1,063 | 1.1/16" | 30 | 1,181 | 1.3/16" | |
| OR13J-12-12 | 19 | 3/4" | 12 | 1.3/16" - 12 | 46 | 1,81 | 14,5 | 0,57 | 30 | 1,181 | 1.3/16" | 36 | 1,417 | 1.7/16" | |
| OR13J-12-16 | 19 | 3/4" | 12 | 1.7/16" - 12 | 53 | 2,09 | 14,8 | 0,58 | 36 | 1,417 | 1.7/16" | 41 | 1,614 | 1.5/8" | |
| OR13J-16-12 | 25 | 1" | 16 | 1.3/16" - 12 | 51 | 2.01 | 14,5 | 0,57 | 36 | 1,417 | 1.1/4" | 36 | 1,417 | 1.7/16" | |
| OR13J-16-16 | 25 | 1" | 16 | 1.7/16" - 12 | 53 | 2.09 | 14.8 | 0,58 | 36 | 1,417 | 1.7/16" | 41 | 1,614 | 1.5/8" | |
| OR12J-16-20 | 25 | 1" | 16 | 1.11/16" - 12 | 55 | 2,17 | 14,8 | 0,58 | 41 | 1,614 | 1.5/8" | 50 | 1,969 | 2" | |
| OR12J-20-20 | 31 | 1.1/4" | 20 | 1.11/16" - 12 | 59 | 2,32 | 14,8 | 0,58 | 41 | 1,614 | 1.5/8" | 50 | 1,969 | 2" | |
| OR12J-20-24 | 31 | 1.1/4" | 20 | 2" - 12 | 63,1 | 2,48 | 14,8 | 0,58 | 50 | 1,969 | 2" | 60 | 2,362 | 2.3/8" | |
| OR12J-24-24 | 38 | 1.1/2" | 24 | 2" - 12 | 61,0 | 2,40 | 14,8 | 0,58 | 50,0 | 1,969 | 2" | 60,0 | 2,362 | 2.3/8" | |
Nut type
OR13
OR12
