FS43H
FOR 6 SPIRAL HOSES - NO SKIVE
METRIC HEAVY FEMALE SWIVEL - 45° ELBOW (24° CONE SEAT)
| Code | Hose | T | PIPE | A | B | D | CH | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | INCH | SIZE | [mm] | [in] | [mm] | [in] | [mm] | [in] | [mm] | [in] | [in] | ||||
| FS43H-20-52 | 31 | 1.1/4" | 20 | M52X2 | S38 | 123,3 | 4,85 | 6,5 | 0,26 | 45,6 | 1,80 | 60 | 2,362 | 2.3/8" | |
| FS42H-24-52 | 38 | 1.1/2" | 24 | M52X2 | S38 | 130 | 5,12 | 6,5 | 0,26 | 47,2 | 1,86 | 60 | 2,362 | 2.3/8" | |

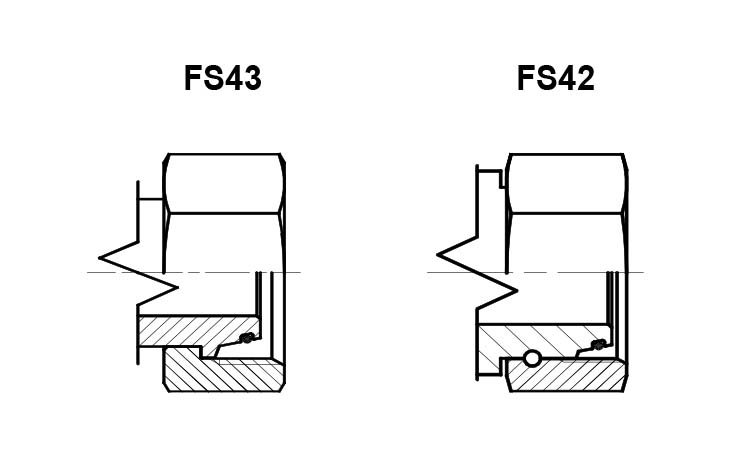

Nut type
