One Piece Fittings
OUR PDF CATALOGUES
FS13H
FOR 6 SPIRAL HOSES - NO SKIVE
METRIC HEAVY FEMALE SWIVEL (24° CONE SEAT)
| Code | Hose | T | PIPE | A | B | CH | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | INCH | SIZE | [mm] | [in] | [mm] | [in] | [mm] | [in] | [in] | ||||
| FS13H-20-52 | 31 | 1.1/4" | 20 | M52X2 | S38 | 48,9 | 1,93 | 6,5 | 0,26 | 60 | 2,362 | 2.3/8" | |
| FS12H-24-52 | 38 | 1.1/2" | 24 | M52X2 | S38 | 43 | 1,69 | 6,5 | 0,26 | 60 | 2,362 | 2.3/8" | |

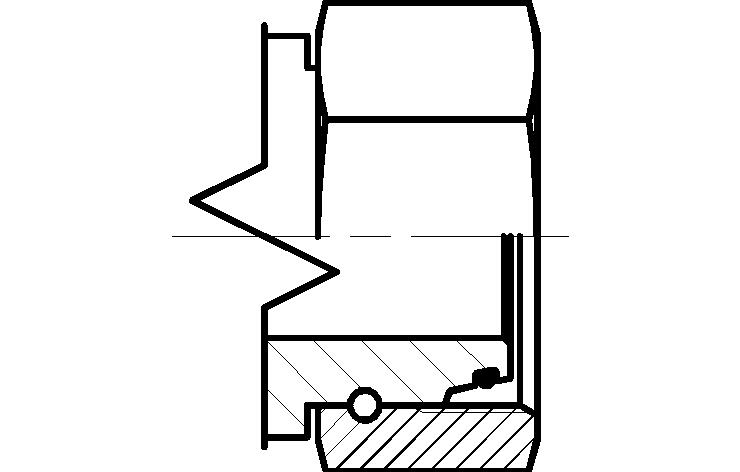

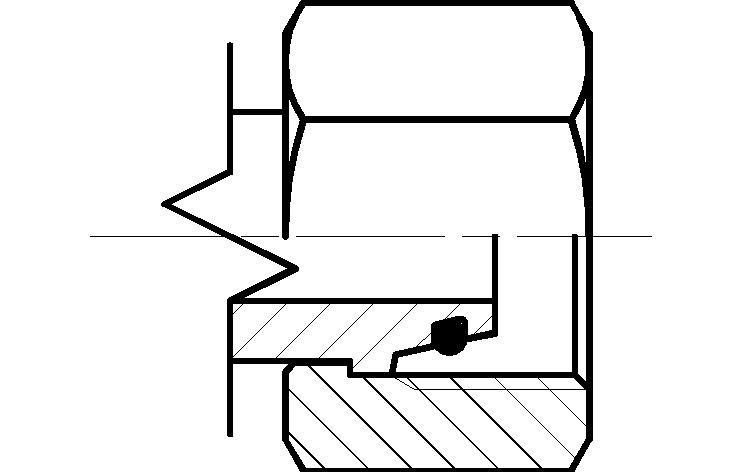

Nut type
FS13
FS12
