FO43J
FOR MULTISPIRAL AND WIRE BRAID HOSES - NO SKIVE
BSP O-RING FEMALE SWIVEL 60° CONE - 45° ELBOW
Code Hose T A B D CH
DN INCH SIZE [mm] [in] [mm] [in] [mm] [in] [mm] [in] [in]
F043J-06-06 10 3/8" 06 3/8" - 19 37.7 1.48 6.1 0.24 15 0.59 22 0.866 7/8"
FO43J-08-08 12 1/2" 08 1/2" - 14 46 1.81 6.5 0.26 18 0.71 27 1.063 1.1/16"
FO42J-10-10 16 5/8" 10 5/8" - 14 63 2.48 9.5 0.37 26 1.02 30 1.181 1.3/16"
FO42J-12-12 19 3/4" 12 3/4" - 14 68,9 2,71 8,7 0,34 28,3 1,11 32,0 1.260 1.1/4"
FO42J-16-16 25 1" 16 1" - 11 83.6 3.29 10.5 0.41 33.8 1.33 38 1.496 1.1/2"
FO42J-20-20 31 1.1/4" 20 1.1/4" - 11 97.5 3.84 10 0.39 36.3 1.43 50 1.969 2"
FO42J-24-24 38 1.1/2" 24 1.1/2" - 11 119 4.69 12 0.47 49.2 1.94 55 2.165 2.3/16"
FO42J-32-32 51 2" 32 2" - 11 142,2 5,60 16,0 0,63 59,6 2,35 70,0 2,756 2.3/4"

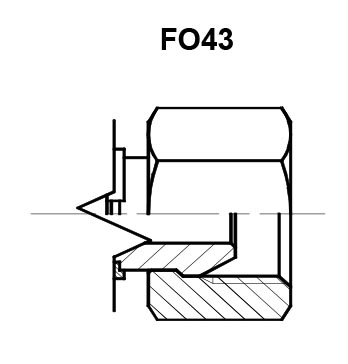

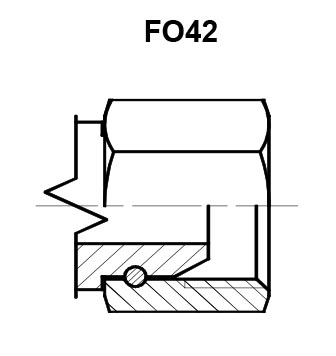

Nut type
