FO13J
FOR MULTISPIRAL AND WIRE BRAID HOSES - NO SKIVE
BSP O-RING FEMALE SWIVEL 60° CONE
| Code | Hose | T | A | B | CH | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | INCH | SIZE | [mm] | [in] | [mm] | [in] | [mm] | [in] | [in] | ||
| FO13J-06-06 | 10 | 3/8" | 06 | 3/8" - 19 | 19 | 0.75 | 6.1 | 0.24 | 22 | 0.866 | 7/8" |
| FO13J-08-08 | 12 | 1/2" | 08 | 1/2" - 14 | 21 | 0.83 | 6.5 | 0.26 | 27 | 1.063 | 1.1/16" |
| FO12J-10-10 | 16 | 5/8" | 10 | 5/8" - 14 | 21.5 | 0.85 | 9.5 | 0.37 | 30 | 1.181 | 1.3/16" |
| FO12J-12-12 | 19 | 3/4" | 12 | 3/4" - 14 | 24,0 | 0,94 | 8,7 | 0,34 | 32,0 | 1.260 | 1.1/4" |
| FO12J-16-16 | 25 | 1" | 16 | 1" - 11 | 28.5 | 1.12 | 10.5 | 0.41 | 38 | 1.496 | 1.1/2" |
| FO12J-20-20 | 31 | 1.1/4" | 20 | 1.1/4" - 11 | 35 | 1.38 | 10 | 0.39 | 50 | 1.969 | 2" |
| FO12J-24-24 | 38 | 1.1/2" | 24 | 1.1/2" - 11 | 35.8 | 1.41 | 12 | 0.47 | 55 | 2.165 | 2.3/16" |
| FO12J-32-32 | 51 | 2" | 32 | 2" - 11 | 39.8 | 1.57 | 16 | 0.63 | 70 | 2.755 | 2.3/4" |

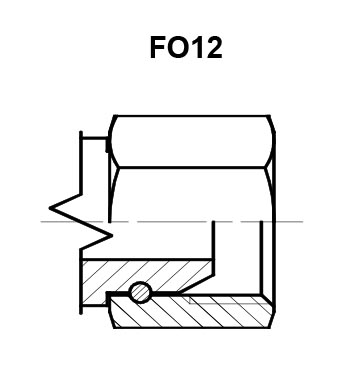

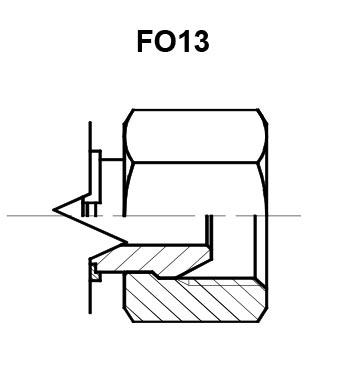

Nut type
