FL13T
FOR SAE 100 R7 AND R14 HOSES
METRIC LIGHT FEMALE SWIVEL (24° CONE SEAT)
| Code | Hose | T | PIPE | A | B | CH | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | INCH | SIZE | [mm] | [in] | [mm] | [in] | [mm] | [in] | [in] | |||
| FL13T-04-12 | 6 | 1/4" | 04 | M12X1,5 | L6 | 20,9 | 0,82 | 2,6 | 0,10 | 16 | 0,630 | -- |
| FL13T-04-14 | 6 | 1/4" | 04 | M14X1,5 | L8 | 25 | 0,98 | 1,5 | 0,06 | 17 | 0,669 | 11/16" |
| FL13T-04-16 | 6 | 1/4" | 04 | M16X1,5 | L10 | 27,5 | 1,08 | 1,5 | 0,06 | 19,0 | 0,748 | 3/4" |
| FL13T-05-16 | 8 | 5/16" | 05 | M16X1,5 | L10 | 27,5 | 1,08 | 1,5 | 0,06 | 19,0 | 0,748 | 3/4" |
| FL13T-05-18 | 8 | 5/16" | 05 | M18X1,5 | L12 | 26 | 1,02 | 1,5 | 0,06 | 22 | 0,866 | 7/8" |
| FL12T-06-16 | 10 | 3/8" | 06 | M16X1,5 | L10 | 23 | 0,91 | 3,5 | 0,14 | 19 | 0,748 | 3/4" |
| FL13T-06-18 | 10 | 3/8" | 06 | M18X1,5 | L12 | 26 | 1,02 | 1,5 | 0,06 | 22 | 0,866 | 7/8" |
| FL13T-08-22 | 12 | 1/2" | 08 | M22X1,5 | L15 | 28,5 | 1,12 | 2,5 | 0,10 | 27 | 1,063 | 1.1/16" |
| FL13T-10-26 | 16 | 5/8" | 10 | M26X1,5 | L18 | 29 | 1,14 | 2 | 0,08 | 32 | 1,260 | 1.1/4" |
| FL13T-12-30 | 19 | 3/4" | 12 | M30X2 | L22 | 29,5 | 1,16 | 3,5 | 0,14 | 36,0 | 1,417 | 1.7/16" |
| FL13T-16-36 | 25 | 1" | 16 | M36X2 | L28 | 32 | 1.26 | 3,5 | 0,14 | 41 | 1,614 | 1.5/8" |

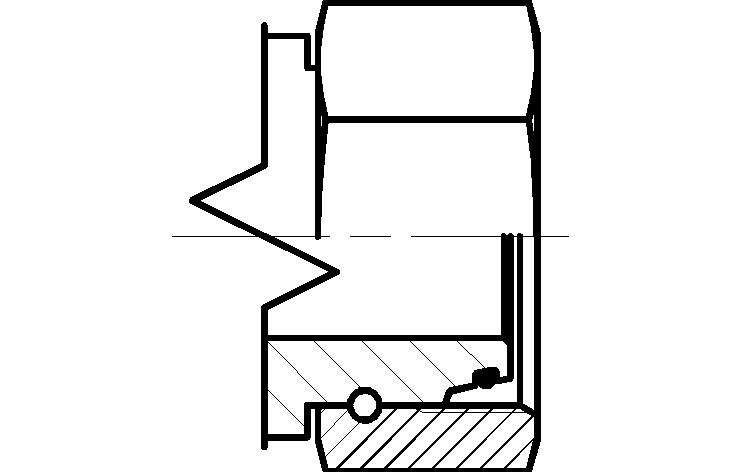

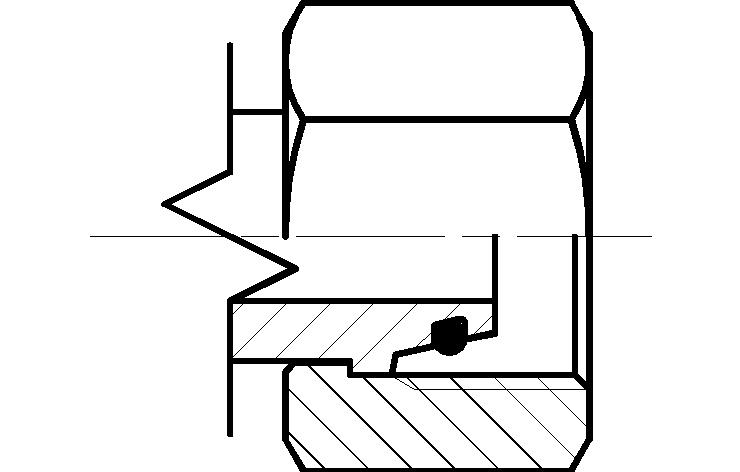

Nut type
FL13
FL12
