FK11J
FOR MULTISPIRAL AND WIRE BRAID HOSES - NO SKIVE
JAPANESE "KOM" STYLE TERMINATION FEMALE SWIVEL 60° CONE
| Code | Hose | T | A | B | ES | CH | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | INCH | SIZE | [mm] | [in] | [mm] | [in] | [mm] | [in] | [in] | [mm] | [in] | [in] | |||
| FK11J-06-14 | 10 | 3/8" | 06 | M14X1,5 | 25 | 0,98 | 10 | 0,39 | 19 | 0,748 | 3/4" | 19 | 0,748 | 3/4" | |
| FK11J-06-16 | 10 | 3/8" | 06 | M16X1,5 | 23 | 0,91 | 9,3 | 0,37 | 19 | 0,748 | 3/4" | 22 | 0,866 | 7/8" | |
| FK11J-06-18 | 10 | 3/8" | 06 | M18X1,5 | 24 | 0,94 | 11,5 | 0,45 | 19 | 0,748 | 3/4" | 24 | 0,945 | 15/16" | |
| FK11J-06-20 | 10 | 3/8" | 06 | M20X1,5 | 25,5 | 1,00 | 11,2 | 0,44 | 19 | 0,748 | 3/4" | 27 | 1,063 | 1.1/16" | |
| FK11J-06-22 | 10 | 3/8" | 06 | M22X1,5 | 25,5 | 1,00 | 14 | 0,55 | 19 | 0,748 | 3/4" | 27 | 1,063 | 1.1/16" | |
| FK11J-08-22 | 12 | 1/2" | 08 | M22X1,5 | 27,0 | 1,06 | 14,0 | 0,55 | 22,0 | 0,866 | 7/8" | 27,0 | 1,063 | 1.1/16" | |
| FK11J-08-24 | 12 | 1/2" | 08 | M24X1,5 | 30,2 | 1,19 | 15,1 | 0,59 | 24 | 0,945 | 15/16" | 32 | 1,260 | 1.1/4" | |
| FK11J-10-24 | 16 | 5/8" | 10 | M24X1,5 | 28,5 | 1,12 | 15,1 | 0,59 | 24,0 | 0,945 | 15/16" | 32,0 | 1,260 | 1.1/4" | |
| FK11J-12-24 | 19 | 3/4" | 12 | M24X1,5 | 31,0 | 1,22 | 15,1 | 0,59 | 27,0 | 1,063 | 1.1/16" | 32,0 | 1,260 | 1.1/4" | |
| FK11J-12-30 | 19 | 3/4" | 12 | M30X1,5 | 33 | 1,29 | 18,3 | 0,72 | 30 | 1,181 | 1.3/16" | 36 | 1,417 | 1.7/16" | |
| FK11J-12-33 | 19 | 3/4" | 12 | M33X1,5 | 33,7 | 1,33 | 21,3 | 0,84 | 32 | 1,260 | 1.1/4" | 41 | 1,614 | 1.5/8" | |
| FK11J-12-36 | 19 | 3/4" | 12 | M36X1,5 | 34,7 | 1,37 | 20 | 0,79 | 41 | 1,614 | 1.5/8" | 46 | 1,811 | 1.13/16" | |
| FK11J-16-33 | 25 | 1" | 16 | M33X1,5 | 34.7 | 1.37 | 21,3 | 0,84 | 32 | 1,260 | 1.1/4" | 41 | 1,614 | 1.5/8" | |
| FK11J-16-36 | 25 | 1" | 16 | M36X1,5 | 36 | 1,42 | 16 | 0.63 | 41 | 1,614 | 1.5/8" | 46 | 1,811 | 1.13/16" | |
| FK11J-20-36 | 31 | 1.1/4" | 20 | M36X1,5 | 40 | 1,57 | 20 | 0,79 | 41 | 1,614 | 1.5/8" | 46 | 1,811 | 1.13/16" | |
| FK12J-20-42 | 31 | 1.1/4" | 20 | M42X1,5 | 47,0 | 1,85 | 18,8 | 0,74 | 50,0 | 1,969 | 2" | 55,0 | 2,165 | 2.3/16" | |
| FK12J-24-42 | 38 | 1.1/2" | 24 | M42X1,5 | 44,0 | 1,73 | 18,8 | 0,74 | 50,0 | 1,969 | 2" | 55,0 | 2,165 | 2.3/16" | |

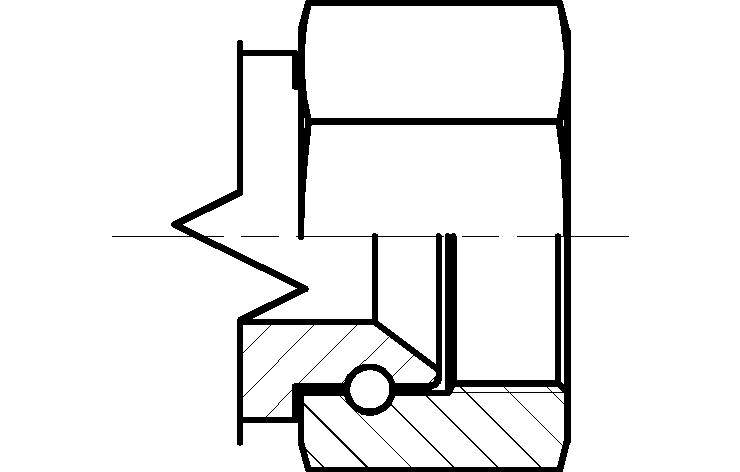

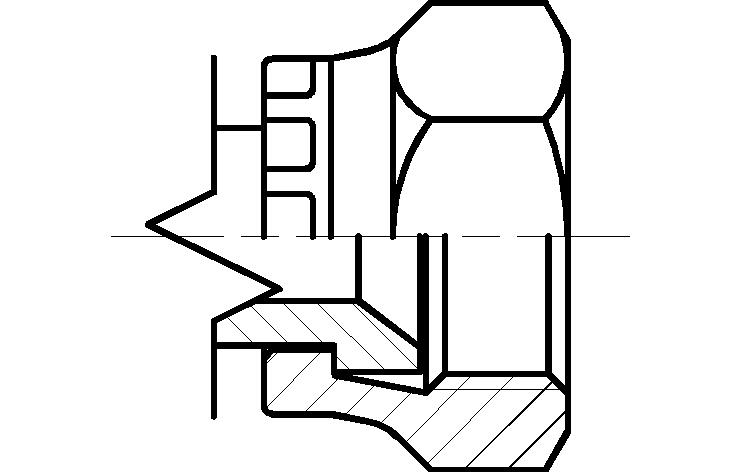

Nut type
FK11
FK12
