FJ41J
FOR MULTISPIRAL AND WIRE BRAID HOSES - NO SKIVE
JIC 37° FEMALE SWIVEL - 45° ELBOW
| Code | Hose | T | A | B | D | CH | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | INCH | SIZE | [mm] | [in] | [mm] | [in] | [mm] | [in] | [mm] | [in] | [in] | |||
| FJ41J-06-06 | 10 | 3/8" | 06 | 9/16" - 18 | 33,9 | 1,33 | 9,5 | 0,37 | 12,1 | 0,48 | 19,0 | 0,748 | 3/4" | |
| FJ46J-06-06 | 10 | 3/8" | 06 | 9/16" - 18 | 44.5 | 1.75 | 9,5 | 0,37 | 11.5 | 0.45 | 17,46 | 0,687 | 11/16" | |
| FJ43J-06-08 | 10 | 3/8" | 06 | 3/4" - 16 | 42.5 | 1.67 | 10,7 | 0,42 | 15 | 0,59 | 22 | 0,866 | 7/8" | |
| FJ41J-08-08 | 12 | 1/2" | 08 | 3/4" - 16 | 40,7 | 1,60 | 10,7 | 0,42 | 13,8 | 0.54 | 22,0 | 0,866 | 7/8" | |
| FJ43J-08-10 | 12 | 1/2" | 08 | 7/8" - 14 | 48,5 | 1,91 | 12,5 | 0,49 | 21,2 | 0,83 | 27,0 | 1,063 | 1.1/16" | |
| FJ41J-10-10 | 16 | 5/8" | 10 | 7/8" - 14 | 61,5 | 2,42 | 12,7 | 0,50 | 25,0 | 0,98 | 27,0 | 1,063 | 1.1/16" | |
| FJ41J-10-12 | 16 | 5/8" | 10 | 1.1/16" - 12 | 64,0 | 2,52 | 14,3 | 0,56 | 26,9 | 1,06 | 32,0 | 1,260 | 1.1/4" | |
| FJ41J-12-12 | 19 | 3/4" | 12 | 1.1/16" - 12 | 67,4 | 2,66 | 14,3 | 0,56 | 26,9 | 1,06 | 32,0 | 1.260 | 1.1/4" | |
| FJ42J-12-12 | 19 | 3/4" | 12 | 1.1/16" - 12 | 71,6 | 2,82 | 13,8 | 0,54 | 28,3 | 1,11 | 32 | 1,260 | 1.1/4" | |
| FJ41J-12-16 | 19 | 3/4" | 12 | 1.5/16" - 12 | 71,5 | 2,81 | 15,1 | 0,59 | 31,8 | 1,25 | 38,0 | 1,496 | 1.1/2" | |
| FJ41J-12-16 | 19 | 3/4" | 12 | 1.5/16" - 12 | 71,5 | 2,81 | 15,1 | 0,59 | 31,8 | 1,25 | 38 | 1,496 | 1.1/2" | |
| FJ41J-16-16 | 25 | 1" | 16 | 1.5/16" - 12 | 86,0 | 3,38 | 15,1 | 0,59 | 34,5 | 1,36 | 38,0 | 1,496 | 1.1/2" | |
| FJ41J-16-16 | 25 | 1" | 16 | 1.5/16" - 12 | 86,0 | 3,38 | 15,1 | 0,59 | 34,5 | 1,36 | 38 | 1,496 | 1.1/2" | |
| FJ42J-16-20 | 25 | 1" | 16 | 1.5/8" - 12 | 92,2 | 3,63 | 16,0 | 0,63 | 39,2 | 1,54 | 50,0 | 1,969 | 2" | |
| FJ42J-20-20 | 31 | 1.1/4" | 20 | 1.5/8" - 12 | 97,0 | 3,82 | 16,0 | 0,63 | 37,5 | 1,48 | 50,0 | 1,969 | 2" | |
| FJ42J-24-24 | 38 | 1.1/2" | 24 | 1.7/8" - 12 | 119,0 | 4,69 | 18,5 | 0,73 | 49,2 | 1,94 | 55,0 | 2,165 | 2.3/16" | |
| FJ42J-32-32 | 51 | 2" | 32 | 2.1/2" - 12 | 152,6 | 6,01 | 24,0 | 0,94 | 68,8 | 2,71 | 75,0 | 2,953 | - | |

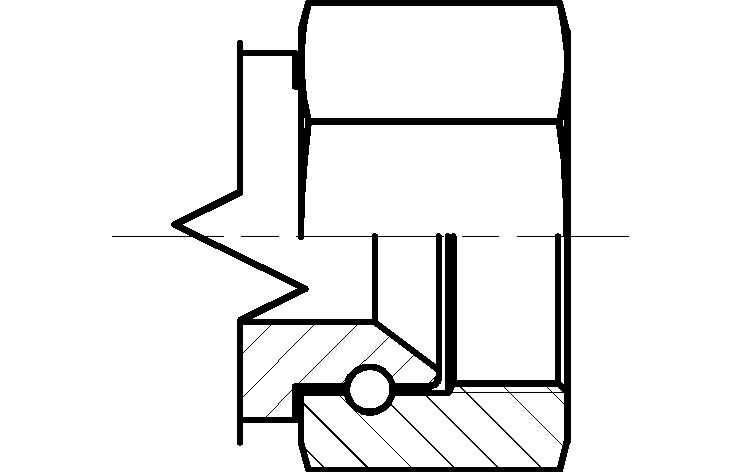

Nut type
FJ41
FJ42
FJ43
FJ46 (IMPERIAL NUT)
