FJ11J
FOR MULTISPIRAL AND WIRE BRAID HOSES - NO SKIVE
JIC 37° FEMALE SWIVEL
| Code | Hose | T | A | B | ES | CH | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | INCH | SIZE | [mm] | [in] | [mm] | [in] | [mm] | [in] | [in] | [mm] | [in] | [in] | |||
| FJ11J-06-06 | 10 | 3/8" | 06 | 9/16" - 18 | 24,0 | 0,94 | 9,5 | 0,37 | 17,0 | 0,669 | 11/16" | 19,0 | 0,748 | 3/4" | |
| FJ16J-06-06 | 10 | 3/8" | 06 | 9/16" - 18 | 24,0 | 0,94 | 9,5 | 0,37 | 17,0 | 0,669 | 11/16" | 17,46 | 0,687 | 3/4" | |
| FJ11J-06-08 | 10 | 3/8" | 06 | 3/4" - 16 | 26 | 1,02 | 10,7 | 0,42 | 19 | 0,748 | 3/4" | 22 | 0,866 | 7/8" | |
| FJ11J-06-10 | 10 | 3/8" | 06 | 7/8" - 14 | 28.5 | 1.12 | 12,7 | 0,50 | 22 | 0,866 | 7/8" | 27 | 1,063 | 1.1/16" | |
| FJ11J-08-06 | 12 | 1/2" | 08 | 9/16" - 18 | 26,5 | 1,04 | 9,5 | 0,37 | 19,0 | 0,748 | 3/4" | 19,0 | 0,748 | 3/4" | |
| FJ11J-08-08 | 12 | 1/2" | 08 | 3/4" - 16 | 26,5 | 1,04 | 10,7 | 0,42 | 19,0 | 0,748 | 3/4" | 22,0 | 0,866 | 7/8" | |
| FJ11J-08-10 | 12 | 1/2" | 08 | 7/8" - 14 | 28,5 | 1,12 | 12,7 | 0,50 | 22,0 | 0,866 | 7/8" | 27,0 | 1,063 | 1.1/16" | |
| FJ11J-08-12 | 12 | 1/2" | 08 | 1.1/16" - 12 | 34,0 | 1,38 | 14,3 | 0,56 | 27,0 | 1.063 | 1.1/16" | 32,0 | 1.260 | 1.1/4" | |
| FJ11J-10-08 | 16 | 5/8" | 10 | 3/4" - 16 | 28,5 | 1,12 | 10,7 | 0,42 | 22,0 | 0,866 | 7/8" | 22,0 | 0,866 | 7/8" | |
| FJ11J-10-10 | 16 | 5/8" | 10 | 7/8" - 14 | 28,5 | 1,17 | 12,7 | 0,50 | 22,0 | 0,866 | 7/8" | 27,0 | 1,063 | 1.1/16" | |
| FJ11J-10-12 | 16 | 5/8" | 10 | 1.1/16" - 12 | 34 | 1.34 | 14.3 | 0.56 | 27 | 1,063 | 1.1/16" | 32 | 1.260 | 1.1/4" | |
| FJ11J-12-10 | 19 | 3/4" | 12 | 7/8" - 14 | 35,0 | 1,38 | 12,7 | 0,50 | 27,0 | 1,063 | 1.1/16" | 27,0 | 1,063 | 1.1/16" | |
| FJ11J-12-14 | 19 | 3/4" | 12 | 1.3/16" - 12 | 31,0 | 1,22 | 14,5 | 0,57 | 36,0 | 1,181 | 1.3/16" | 36,0 | 1,417 | 1.7/16" | |
| FJ11J-12-16 | 19 | 3/4" | 12 | 1.5/16" - 12 | 38,5 | 1,51 | 15,1 | 0,59 | 32 | 1,260 | 1.1/4" | 38 | 1,496 | 1.1/2" | |
| FJ11J-16-12 | 25 | 1" | 16 | 1.1/16" - 12 | 38 | 1.50 | 14.3 | 0.56 | 32 | 1.260 | 1.1/4" | 32 | 1.260 | 1.1/4" | |
| FJ11J-16-16 | 25 | 1" | 16 | 1.5/16" - 12 | 38,0 | 1,50 | 15,1 | 0,59 | 32 | 1,260 | 1.1/4" | 38 | 1,496 | 1.1/2" | |
| FJ12J-16-20 | 25 | 1" | 16 | 1.5/8" - 12 | 52,6 | 2.07 | 16 | 0,63 | 41 | 1,614 | 1.5/8" | 50 | 1,969 | 2" | |
| FJ11J-20-16 | 31 | 1.1/4" | 20 | 1.5/16" - 12 | 51,5 | 2,03 | 16,0 | 0,63 | 41,0 | 1,614 | 1.5/8" | 38,0 | 1,496 | 1.1/2" | |
| FJ12J-20-20 | 31 | 1.1/4" | 20 | 1.5/8" - 12 | 51,5 | 2,03 | 16 | 0,63 | 41 | 1,614 | 1.5/8" | 50 | 1,969 | 2" | |
| FJ12J-20-24 | 31 | 1.1/4" | 20 | 1.7/8" - 12 | 56,8 | 2,24 | 18,5 | 0,73 | 50 | 1,969 | 2" | 55 | 2,165 | 2.3/16" | |
| FJ12J-24-24 | 38 | 1.1/2" | 24 | 1.7/8" - 12 | 56,9 | 2,24 | 18,5 | 0,73 | 50 | 1,969 | 2" | 55 | 2,165 | 2.3/16" | |
| FJ12J-32-32 | 51 | 2" | 32 | 2.1/2" - 12 | 74 | 2,91 | 24 | 0,94 | 65 | 2,559 | 2.9/16" | 75 | 2,953 | - | |

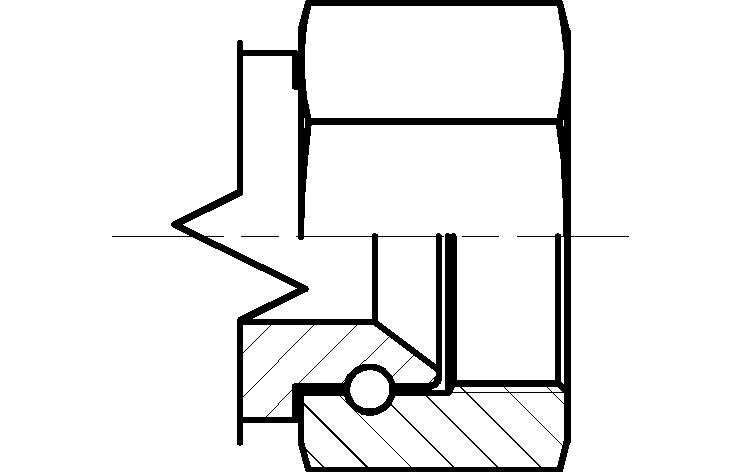

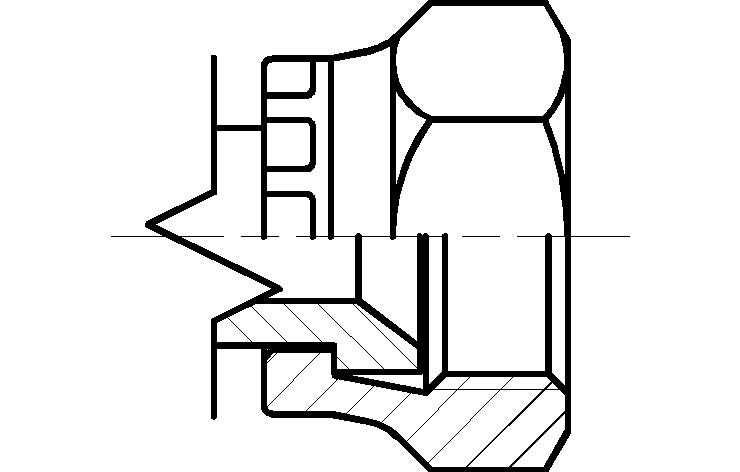

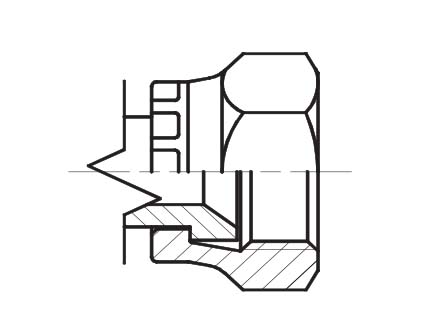

Nut type
FJ11
FJ12
FJ16 (IMPERIAL NUT)
