FB91K
FOR WIRE BRAID HOSES - NO SKIVE
BSP FEMALE SWIVEL 60° CONE - 90° ELBOW
| Code | Hose | T | A | B | D | CH | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DN | INCH | SIZE | [mm] | [in] | [mm] | [in] | [mm] | [in] | [mm] | [in] | [in] | |||
| FB93K-04-04 | 6 | 1/4" | 04 | 1/4" - 19 | 27,6 | 1,09 | 4,2 | 0,17 | 27,5 | 1,08 | 19 | 0,748 | 3/4" | |
| FB93K-04-06 | 6 | 1/4" | 04 | 3/8" - 19 | 28 | 1,10 | 6 | 0,24 | 29,5 | 1,16 | 22 | 0,866 | 7/8" | |
| FB93K-05-06 | 8 | 5/16" | 05 | 3/8" - 19 | 32,5 | 1,28 | 6 | 0,24 | 30 | 1,18 | 22 | 0,866 | 7/8" | |
| FB93K-06-06 | 10 | 3/8" | 06 | 3/8" - 19 | 31,5 | 1,24 | 6 | 0,24 | 29,5 | 1,16 | 22 | 0,866 | 7/8" | |
| FB93K-06-08 | 10 | 3/8" | 06 | 1/2" - 14 | 30,3 | 1,19 | 6,5 | 0,26 | 31,2 | 1,23 | 27,0 | 1,063 | 1.1/16" | |
| FB93K-08-08 | 12 | 1/2" | 08 | 1/2" - 14 | 37,2 | 1,47 | 6,5 | 0,26 | 36 | 1,42 | 27 | 1,063 | 1/1/16" | |
| FB91K-08-10 | 12 | 1/2" | 08 | 5/8" - 14 | 45,0 | 1,77 | 9,5 | 0,37 | 42,3 | 1,67 | 27,0 | 1,063 | 1.1/16" | |
| FB91K-10-10 | 16 | 5/8" | 10 | 5/8" - 14 | 54 | 2,13 | 9,5 | 0,37 | 50 | 1,97 | 27 | 1,063 | 1.1/16" | |
| FB91K-10-12 | 16 | 5/8" | 10 | 3/4" - 14 | 54,0 | 2,13 | 8,7 | 0,34 | 55,0 | 2,17 | 32,0 | 1,260 | 1.1/4" | |
| FB91K-12-12 | 19 | 3/4" | 12 | 3/4" - 14 | 55,5 | 2,19 | 8,7 | 0,34 | 55,0 | 2,17 | 32,0 | 1,260 | 1.1/4" | |
| FB92K-12-16 | 19 | 3/4" | 12 | 1" - 11 | 60,5 | 2,38 | 10,5 | 0,41 | 64,0 | 2,52 | 38,0 | 1,496 | 1.1/2" | |
| FB92K-16-16 | 25 | 1" | 16 | 1" - 11 | 72,0 | 2,83 | 10,5 | 0,41 | 71,0 | 2,80 | 38,0 | 1,496 | 1.1/2" | |

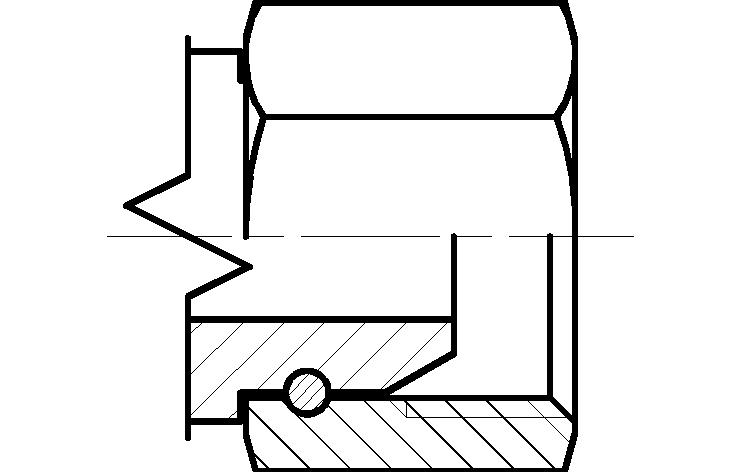

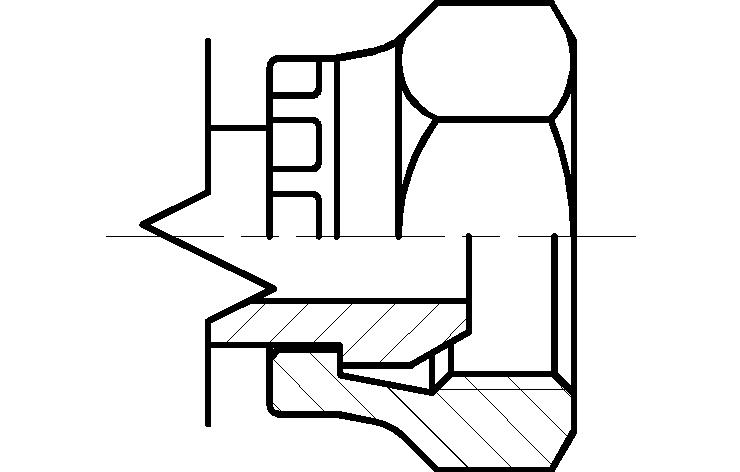

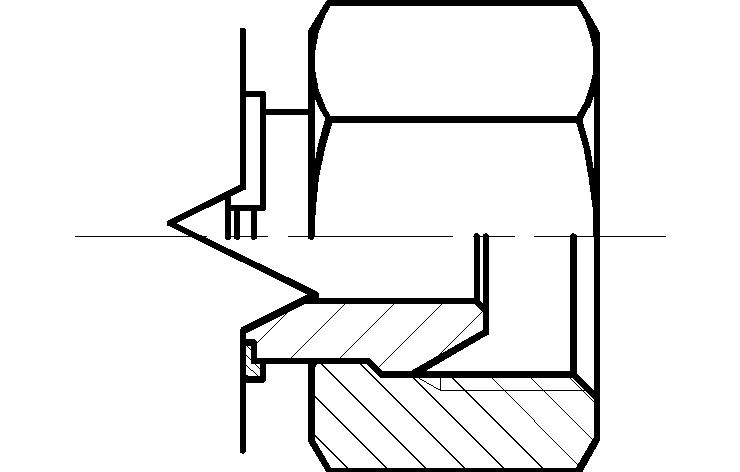

Nut type
FB91
FB92
FB93
