One Piece Fittings



K For wire braid hoses no-skive
J For multispiral and wire braid hoses – no-skive
H For 6 spiral hoses – no-skive
X For 4 and 6 spiral hoses – skive application
T For SAE 100 R7 and T14 hoses

FB41K
FOR WIRE BRAID HOSES - NO SKIVE
BSP FEMALE SWIVEL 60° CONE - 45° ELBOW
Code Hose T A B D CH
DN INCH SIZE [mm] [in] [mm] [in] [mm] [in] [mm] [in] [in]
FB43K-04-04 6 1/4" 04 1/4" - 19 32,5 1,28 4,2 0,17 13 0,51 19 0,748 3/4"
FB43K-04-06 6 1/4" 04 3/8" - 19 34,2 1,34 6 0,24 14,5 0,57 22 0,866 7/8"
FB41K-05-06 8 5/16" 05 3/8" - 19 42,5 1,67 6 0,24 19 0,75 22 0,866 7/8"
FB41K-05-06 8 5/16" 05 3/8 - 19 38 1,49 6 0,24 15 0,59 22 0,866 7/8"
FB43K-06-06 10 3/8" 06 3/8" - 19 37,6 1,48 6 0,24 14,6 0,58 22 0,866 7/8"
FB43K-06-08 10 3/8" 06 1/2" - 14 38,6 1,52 6,5 0,26 15,8 0,62 27 1,063 1.1/16"
FB43K-08-08 12 1/2" 08 1/2" - 14 48,0 1,89 6,5 0,26 18 0,71 27 1,063 1.1/16"
FB41K-10-10 16 5/8" 10 5/8" - 14 60,5 2,38 9,5 0,37 23,3 0,92 27 1,063 1.1/16"
FB41K-10-12 16 5/8" 10 3/4" - 14 64,0 2,52 8,7 0,34 26,9 1,06 32,0 1,260 1.1/4"
FB41K-12-12 19 3/4" 12 3/4" - 14 67,4 2,66 8,7 0,34 20,2 0,79 32 1,260 1.1/4"
FB42K-16-16 25 1" 16 1" - 11 83,6 3,29 10,5 0,41 33,8 1,33 38 1,496 1.1/2"

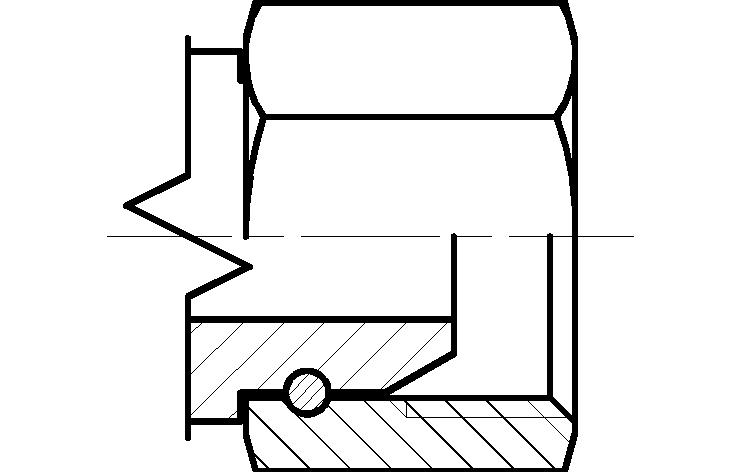

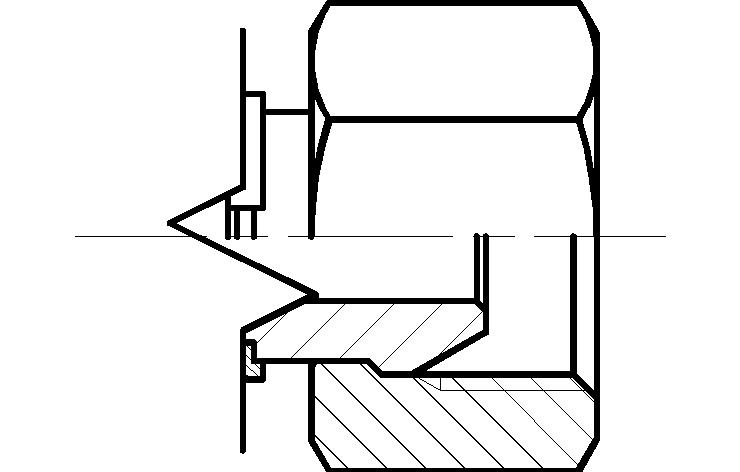

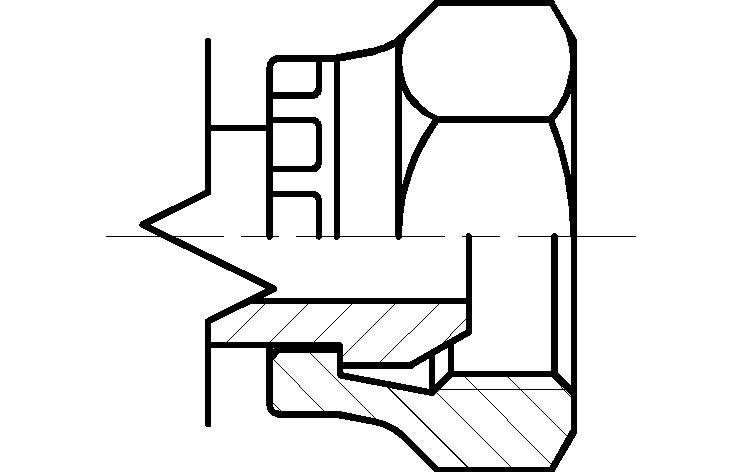

Nut type

FB41
FB41
FB42
FB42
FB43
FB43
