SERIE Z
CORROSIVE ENVIRONMENT COUPLINGS
| sizebase | ∅ dn | code | ∅ a * | b | c | d | l | ch1 | ch2 | ch3 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | plug | socket | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | |||||||||||
| 04 | 6 | 1/4" |
|
|
|
36 | 1.42 | 50 | 1.97 | 31 | 1,22 | 69 | 2,72 | 28 | 1,10 | 24 | 0,94 | 16 | 0,63 | |||||||||
| 06 | 10 | 3/8" |
|
|
|
42 | 1,65 | 57 | 2,24 | 38 | 1,5 | 82 | 3,23 | 34 | 1,34 | 30 | 1,18 | 20 | 0,79 | |||||||||
| 08 | 12 | 1/2" |
|
|
|
55 | 2,17 | 75 | 2,95 | 47 | 1,85 | 100 | 3,94 | 42 | 1,65 | 38 | 1,50 | 27 | 1,06 | |||||||||
| 12 | 20 | 3/4" |
|
|
|
61 | 2,40 | 90 | 3,54 | 56 | 2,2 | 114 | 4,49 | 50 | 1,97 | 42 | 1,65 | 30 | 1,18 | |||||||||
| 16 | 25 | 1" |
|
|
|
61 | 2,40 | 88 | 3,46 | 67 | 2,64 | 120 | 4,72 | 60 | 2,36 | 40 | 1,57 | |||||||||||
| 20 | 32 | 1.1/4" |
|
|
|
70 | 2,76 | 105 | 4,13 | 79 | 3,11 | 140 | 5,51 | 70 | 2,76 | 48 | 1,89 | |||||||||||
| 24 | 38 | 1.1/2" |
|
|
|
70 | 2,76 | 105 | 4,13 | 90 | 3,54 | 140 | 5,51 | 80 | 3,15 | 52 | 2,05 | |||||||||||
| 32 | 50 | 2" |
|
|
|
86 | 3,39 | 130 | 5,12 | 128 | 5,04 | 173 | 6,81 | 120 | 4,72 | 80 | 3,15 | |||||||||||
| 40 | 63 | 2.1/2" |
|
|
|
86 | 3,39 | 130 | 5,12 | 128 | 5,04 | 173 | 6,81 | 120 | 4,72 | 85 | 3,35 | |||||||||||
* Other threads available on request

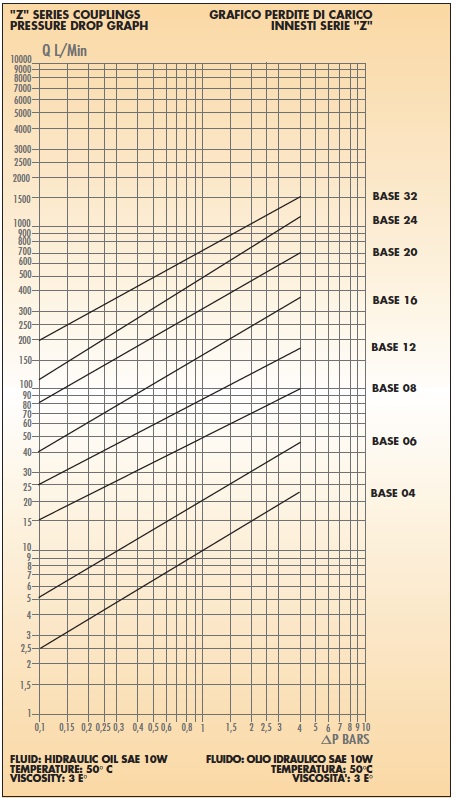

MAIN DATA:
Series Z is a screw to connect coupling range made in stainless steel AISI 316 and available in sizes from 1/4” to 2 1/2”. This series is adopted for high pressure applications working with either corrosive media or in corrosive enviromental
conditions.
- Standard material: AISI 316 stainless steel.
- Internal valves and components in AISI 316.
- Locking sleeve in AISI 316 treated with Q.P.Q.
- Standard seals in Viton
- Working temperature: -15°C/+180°C
- Special seals on request: Viton, EPDM, Neoprene.
