SERIE X
CORROSIVE ENVIRONMENT COUPLINGS
ISO 7241 - B
AISI 316
| sizebase | ∅ dn | code | ∅ a * | b | c | d | l | ch1 | ch2 | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | in | plug | socket | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | ||||||||
| 02 | 5,0 | 1/8" |
|
|
|
30 | 1.18 | 49 | 1.93 | 24 | 0.94 | 60,5 | 2.38 | 14 | 0.55 | 14 | 0.55 | ||||||
| 04 | 6,3 | 1/4" |
|
|
|
35 | 1.38 | 57 | 2.24 | 27 | 1.06 | 70,5 | 2.78 | 19 | 0.75 | 19 | 0.75 | ||||||
| 06 | 10,0 | 3/8" |
|
|
|
41 | 1.61 | 66 | 2.60 | 34 | 1.34 | 82,5 | 3.25 | 24 | 0.94 | 24 | 0.94 | ||||||
| 08 | 12,5 | 1/2" |
|
|
|
46 | 1.81 | 74 | 2.91 | 42 | 1.65 | 92,5 | 3.64 | 27 | 1.06 | 27 | 1.06 | ||||||
| 12 | 20,0 | 3/4" |
|
|
|
55 | 2.17 | 90 | 3.54 | 50 | 1.97 | 111,0 | 4.37 | 36 | 1.42 | 36 | 1.42 | ||||||
| 16 | 25,0 | 1" |
|
|
|
66 | 2.60 | 106 | 4.17 | 60 | 2.36 | 133,0 | 5.24 | 41 | 1.61 | 41 | 1.61 | ||||||

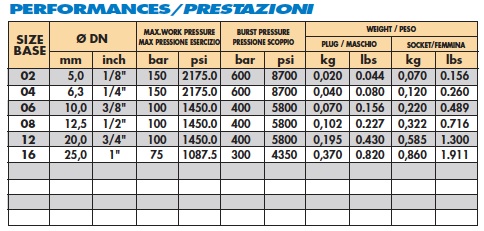

* Other threads available on request

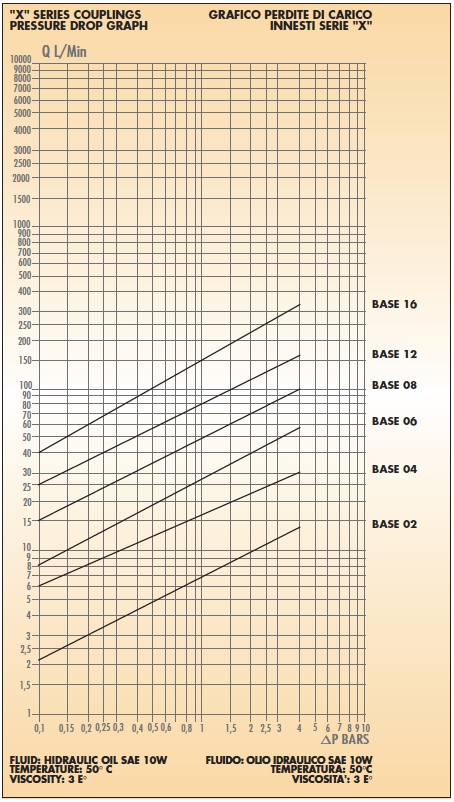

MAIN DATA:
Series X is made in AISI 316 stainless steel and is interchangeable according to ISO 7241-B design.
This series finds application with water or corrosive media and in corrosive environments.
- Interchangeability according to ISO 7241-B
- Material: AISI 316 stainless steel.
- Internal valves and components in AISI 316.
- Standard seals in Viton
- Working temperature range with standard Viton seals: -15°C/ +180°C
- Special seals on request.
