SERIE M
CORROSIVE ENVIRONMENT COUPLINGS
| sizebase | ∅ dn | code | ∅ a | b | c | d | l | ch1 | ch2 | |||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | plug | socket | mm | in | mm | in | mm | in | mm | in | mm | in | mm | in | ||||||||||||||||||||
| 04 | 7 |
|
|
|
48 | 1,89 | 48 | 1,89 | 28 | 1,10 | 85,5 | 3,37 | 22 | 0,87 | 22 | 0,87 | ||||||||||||||||||
| 06 | 9 |
|
|
|
60 | 2,36 | 64,5 | 2,54 | 32 | 1,26 | 109 | 4,29 | 24 | 0,94 | 27 | 1,06 | ||||||||||||||||||
| 08 | 13 |
|
|
|
68 | 2,68 | 73,5 | 2,89 | 38 | 1,50 | 125 | 4,92 | 32 | 1,26 | 32 | 1,26 | ||||||||||||||||||
| 12 | 15 |
|
|
|
70,5 | 2,78 | 78 | 3,07 | 42 | 1,65 | 132 | 5,20 | 36 | 1,42 | 36 | 1,42 | ||||||||||||||||||
| 16 | 17 |
|
|
|
82,5 | 3,25 | 92,5 | 3,64 | 48 | 1,89 | 154 | 6,06 | 45 | 1,77 | 45 | 1,77 | ||||||||||||||||||
| 20 | 21 |
|
|
|
90 | 3,54 | 105 | 4,13 | 55 | 2,17 | 173 | 6,81 | 55 | 2,17 | 55 | 2,17 | ||||||||||||||||||
| 24 | 30 |
|
|
|
111 | 4,37 | 133 | 5,22 | 80 | 3,15 | 215 | 8,46 | 70 | 2,76 | 65 | 2,56 | ||||||||||||||||||

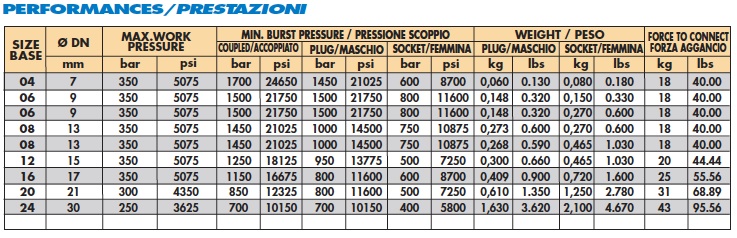

INTERCHANGEABILITY: ISO 16028 – NFPA T3.20.15 (HTMA) – SIZE 3/8

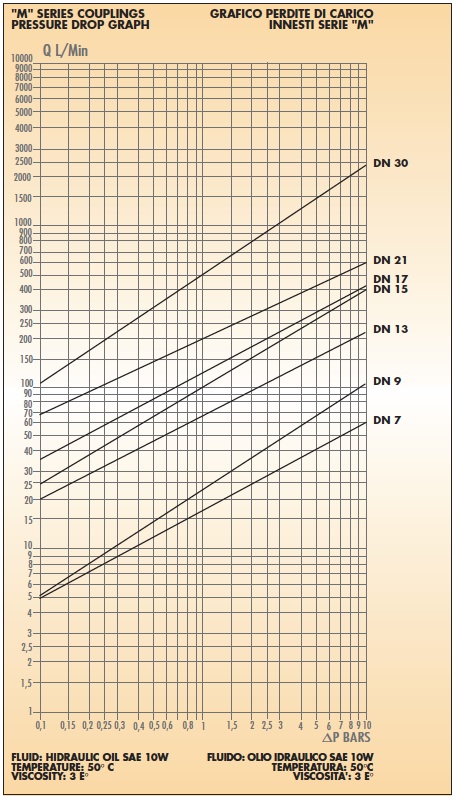

MAIN DATA:
Series M flat face couplings are made in AISI 316 stainless steel and represent the ideal solution for corrosive enviromental situations or for industrial applications with special chemical fluids, food and pharmaceutical.
- Material AISI 316 stainless steel
- Springs in AISI 302, balls in AISI 316
- Perfect sealing of plug and socket both when coupled and uncoupled
- Extremely low spillage during connection and disconnection
- No inclusion of air or external media during connection and disconection
- The flat faces are easy to clean
- Sleeve with a safety device preventing from accidental disconnection
Since sereis M is mainly associated to special applications, the requested seal type must be specified when an order is placed.
