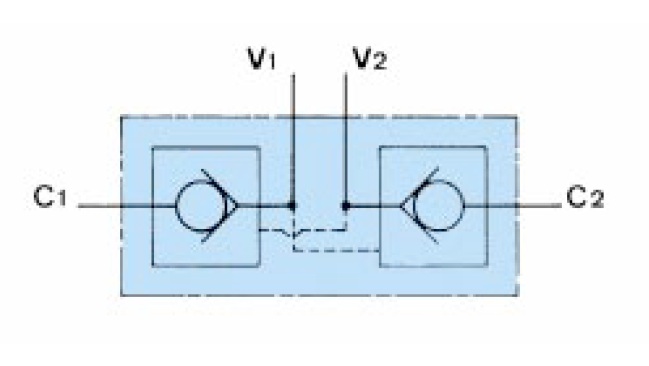

SERIE DPC
HYDRAULIC VALVES
| Serial number | c * | Max flow | Max pressure | a | i | h | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| bar | psi | mm | in | mm | in | mm | in | |||
| DPC-04 | 1/4" | 12 | 350 | 5000 | 126 | 4,96 | 45 | 1,77 | 30 | 1,18 |
| DPC-06 | 3/8" | 30 | 350 | 5000 | 158 | 6,22 | 60 | 2,36 | 40 | 1,57 |
| DPC-08 | 1/2" | 45 | 350 | 5000 | 174 | 6,85 | 60 | 2,36 | 40 | 1,57 |
| DPC-12 | 3/4" | 85 | 300 | 4350 | 212 | 8,35 | 70 | 2,76 | 50 | 1,97 |
| DPCX-06 | 3/8" | 20 | 350 | 5000 | 126 | 4,96 | 45 | 1,77 | 30 | 1,18 |
* Standard thread is BSP (GAS). Available threads on request : metric, NPTF, SAE and UNF.
